Fireproof PU Sealed Rockwool Sandwich Panels for Roof Insulation

A1 fireproof rockwool roof panels with PU edge sealing deliver excellent thermal insulation, soundproofing, and structural durability for steel-frame buildings.

item no.:

N/A

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

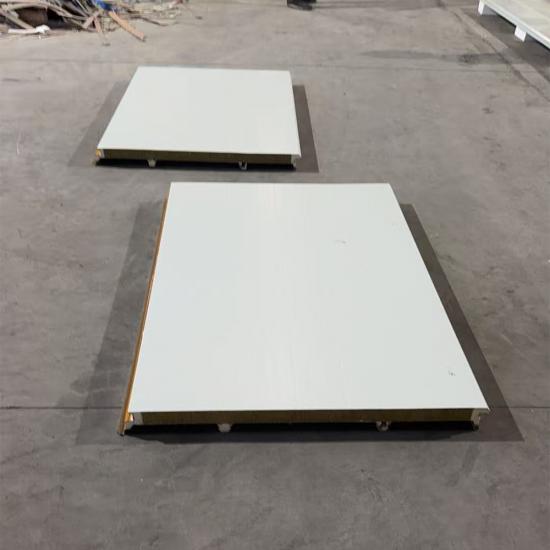

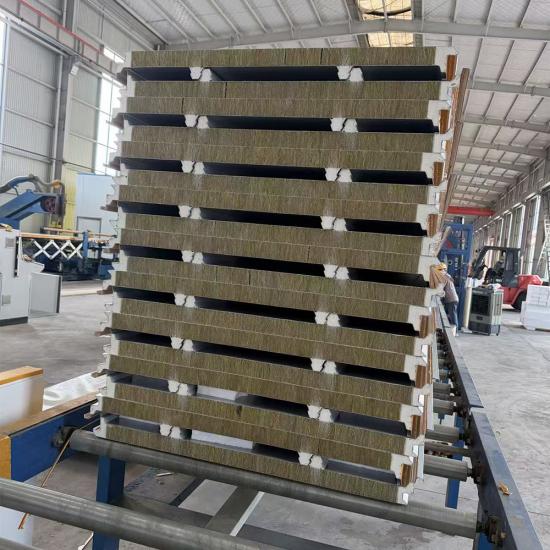

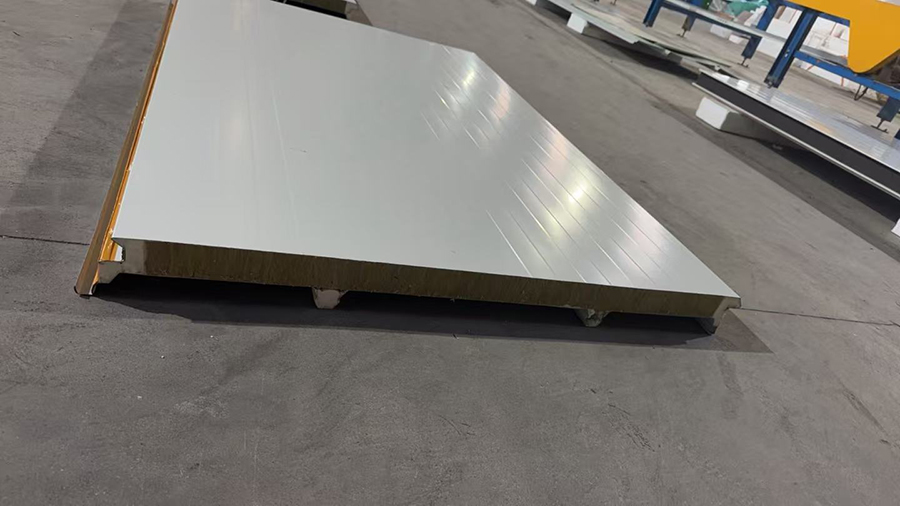

PU-sealed rockwool sandwich panels

PU-sealed rockwool sandwich panels (also known as polyurethane edge-sealed rockwool panels) are high-performance composite building materials that feature a non-combustible rockwool insulation core encapsulated by rigid polyurethane (PU/PIR) foam along its edges, all sandwiched between two protective metal skins. This hybrid construction combines the excellent Class A fire resistance of rockwool with the superior waterproofing, airtightness, and structural strength of polyurethane.

They are widely used for the exterior walls, roofing, and internal partitions of industrial warehouses, factories, cleanrooms, and commercial buildings

Product Specifications

Specification	Details
Core Thickness	50/75/100/150 mm (Rockwool )
Panel Width	Standard 950mm,1150mm
Panel Length	20FT container: ≤ 5.95m 40FT container: ≤ 11.95m
Density of Core	80 kg/m³
Thermal Conductivity	≤ 0.035 W/(m·K)
Fire Rating	Class A1 (excellent fire resistance)
Surface sheets	PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel
Aluminumsheets/Al-Mg-Mnalloymetal sheet	0.70 - 1.20 mm
Steel thickness	0.40 - 0.70 mm
Stainless steel	0.40 - 0.60 mm

Product Advantages

1. A1 Fireproof Core

Rockwool sandwich panels with A1 non‑combustible core stop fire spread. No toxic smoke, no melting. Ideal for steel structures and fire‑sensitive buildings.

2. PU Sealed Edges

PU sealed rockwool sandwich panels prevent moisture and air leaks. The polyurethane edge coating also stops thermal bridging, keeping insulation performance intact.

3. All‑Round Insulation

These rockwool roof panels reduce heat loss and absorb noise. Stable R‑values mean lower energy bills. Proven effective in cold winters and hot summers.

4. Simple Installation

Lightweight rockwool sandwich panels with tongue‑and‑groove joints speed up roofing work. No extra sealants needed. The factory PU sealing saves time and labor..

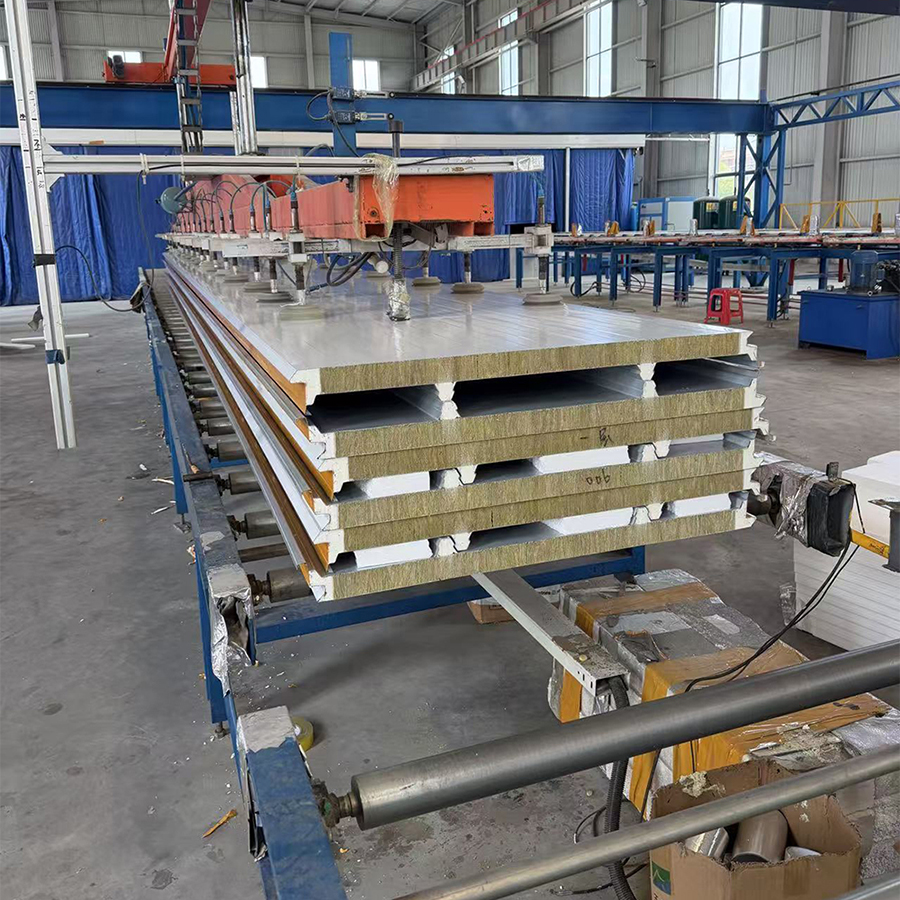

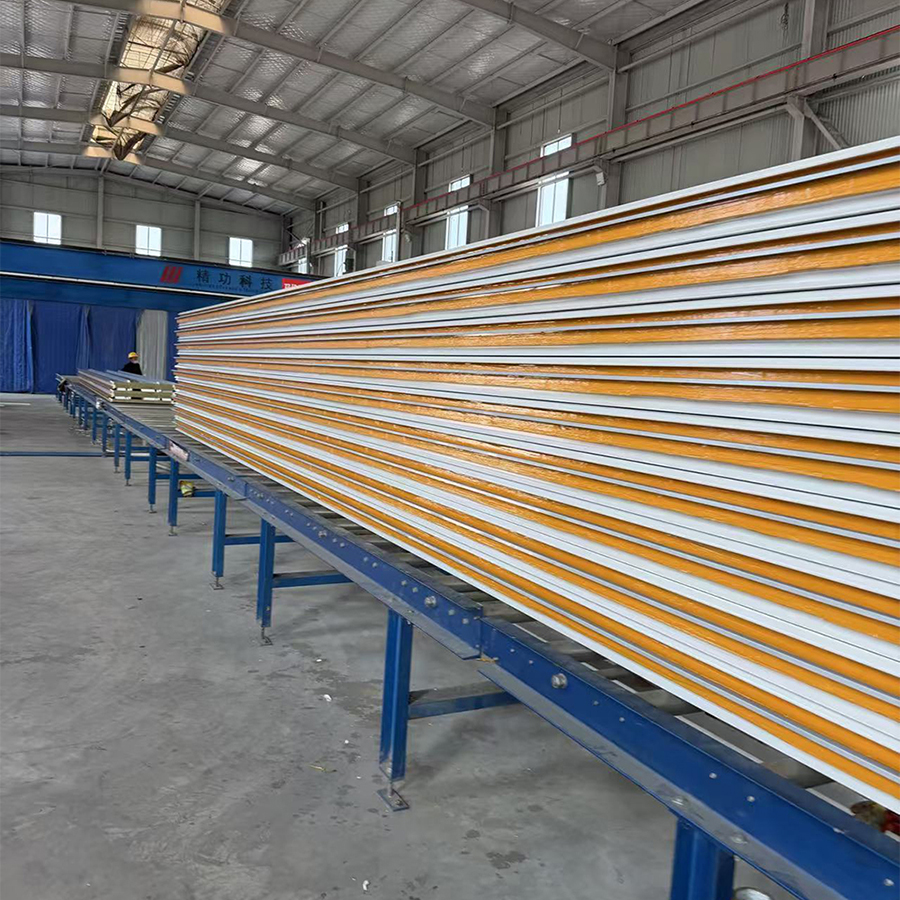

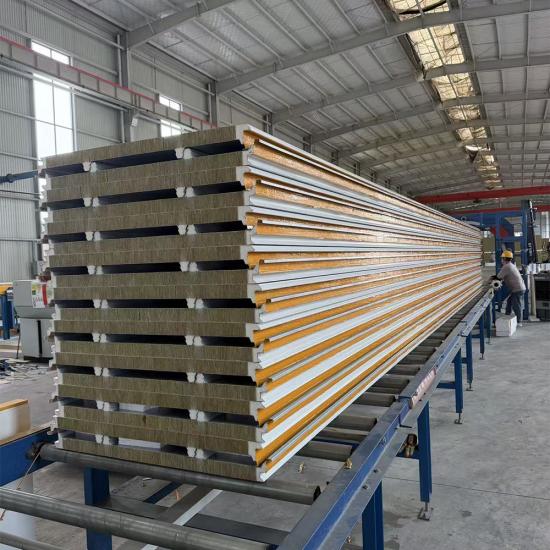

Manufacturing Process of PU Sealed Rockwool Sandwich Panel

The production of PU sealed rockwool sandwich panels begins with high‑density rockwool slabs as the core material. These slabs are precisely cut to thickness and fed into a continuous lamination line. Simultaneously, pre‑painted steel coils are uncoiled, cleaned, and primed for strong adhesion.

The rockwool core passes through a foaming chamber where liquid polyurethane is applied to its edges. This PU sealing cures rapidly, forming a rigid, moisture‑proof border that bonds the core to the metal facings. The entire assembly then moves through a double‑belt press, where heat and pressure laminate the three layers into a single panel.

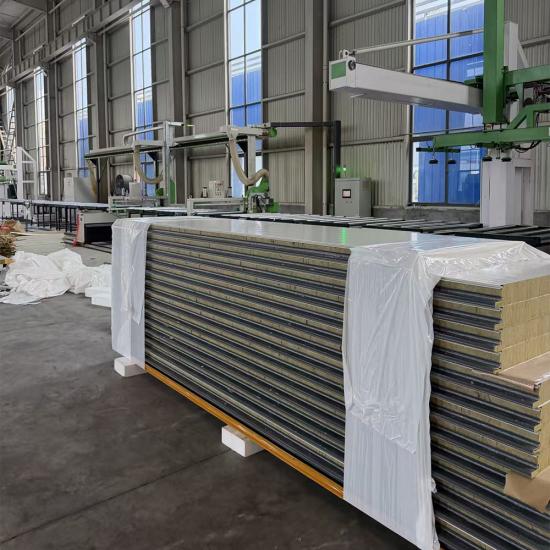

After curing, the panels are cut to custom lengths, stacked, and packed for shipment. Strict quality controls monitor core density, adhesive strength, and edge sealing integrity at every stage, ensuring consistent fire resistance, thermal insulation, and durability for roof and wall applications.

Manufacturing Process of PU Sealed Rockwool Sandwich Panel

Why Choose Yumisteel?

Yumisteel sandwich composite panels offer excellent insulation, heat resistance, high strength, and aesthetic appeal. They are fire-proof, flame-retardant, and easy to assemble, making them ideal for building envelopes and insulation cladding walls across various construction projects.

Our in-house production line for rock wool composite panels is equipped with a 6m bending machine, 6m shearing machine, drilling machine, blast cleaning equipment, and a full CNC system with automatic cutting, assembly, welding, and straightening functions,eliminating manual operation errors.

With strong technical expertise and efficient scale production, Yumisteel has established itself as a premier steel structure and wall panel fabrication and installation provider.

Yumisteel provides dedicated technical support throughout the entire building cycle ,from pre-construction to manufacturing.
