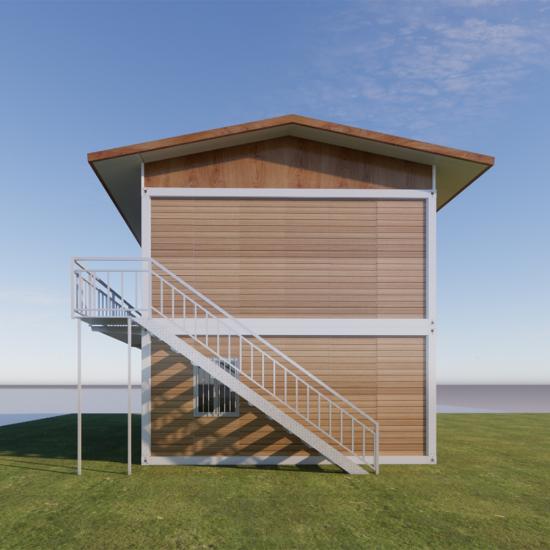

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaocolor:
Customized
Product introduction
The Flat Pack Container House is an engineered building system combining galvanized steel frames with pre-insulated composite panels (typically 50-100mm PIR/PU cores) for structural integrity and thermal efficiency. Its foldable design compresses into flat-packed modules (60-70% space savings), featuring pre-wired electrical channels and bolt-together connections for tool-free assembly (<8 hours for 20ft units). The interlocking corner castings meet ISO shipping standards, enabling road/sea transport without disassembly. Performance includes 120km/h wind resistance, 1.5kN/m² snow load capacity, and 30+ year lifespan due to powder-coated anti-corrosion treatment. Standard configurations support stacking up to 3 units vertically or modular combinations for offices, housing, or mobile clinics.
Product specification
|
Container House Size |
|||||||
|
Size |
External Dimensions |
Internal Dimensions |
Weight |
||||
|
Length |
Width |
Height |
Length |
Width |
Height |
||
|
8'X8' |
2435mm |
2435mm |
2896mm |
2235mm |
2235mm |
2625mm |
950kg |
|
10'X8' |
3025mm |
2435mm |
2896mm |
2825mm |
2235mm |
2625mm |
1150kg |
|
16*X8' |
4885mm |
2435mm |
2896mm |
4685mm |
2235mm |
2625mm |
1350kg |
|
20 ’X8‘ (Standard Model) |
6055mm |
2435mm |
2896mm |
5855mm |
2235mm |
2625mm |
1800kg |
|
24'X8 |
7200mm |
2435mm |
2896mm |
7000mm |
2235mm |
2625mm |
2300kg |
|
30X8 |
9000mm |
2435mm |
2896mm |
8800mm |
2235mm |
2625mm |
2450kg |
|
20'XI0' |
6055mm |
3000mm |
2896mm |
5855mm |
2800mm |
2625mm |
2380kg |
|
Remark: Also available external height of 3300mm individual packing height:648mm. |
|||||||
Product advantages
☆Rapid Deployment
These modular container houses assemble in hours with bolt-together connections, eliminating welding needs. Perfect for urgent projects like disaster relief or temporary camps.
☆Space-Saving Transport
Flat-pack design reduces shipping volume by 65%, allowing cost-effective delivery to remote sites. Units unpack like furniture for instant setup.
☆Military-Grade Durability
Galvanized steel frames and powder-coated finishes withstand hurricanes (-120km/h winds), heavy snow (1.5kN/m²), and -30°C~50°C extremes.
☆Customizable Configurations
Combine prefab modules vertically/horizontally for offices, clinics, or homes. Optional insulation, windows, and partitions adapt to any need.
☆ Eco-Friendly & Reusable
100% recyclable steel structure minimizes waste. Units can be disassembled and relocated repeatedly without performance loss.
Product application
These Flat Container House is perfect for emergency shelters, construction site offices, and modular workforce housing, these prefab container units serve as mobile clinics, pop-up retail spaces, and disaster relief housing. Their quick assembly and relocatable design make them ideal for temporary or permanent use in remote locations, mining camps, and urban expansions.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
Container house is a movable and reusable building product,easy and fast install for dormitory.MOQ:1 set
This 10 FT container house is useful as office, gatehouse, cashier unit,storage room,etc.You can freely imagine what space you want to make it.MOQ:1 set
This foldable container house is easy to install, 2 people, 3 steps, 10 minutes can get a beautiful houre. MOQ:1 set
Expandable container houseis convenient to assemble,can be moved frequently,more importantly,large space for mobile living. MOQ:1 set
20 FT flat packed container house is movable,can be used as as office, living house,etc. It can be designed to meet up your requirement. MOQ:1 set
