Product introduction

steel structure

Custom steel frame buildings deliver versatile, durable solutions tailored to warehouses, factories, retail spaces, and workshops. These steel buildings feature flexible bay spacing, clear heights, and integrated mezzanine levels. Engineered for local wind and snow loads, they ensure rapid erection, minimal maintenance, and long term value for diverse commercial and industrial operations.

Product specification

Specification Item	Details / Range

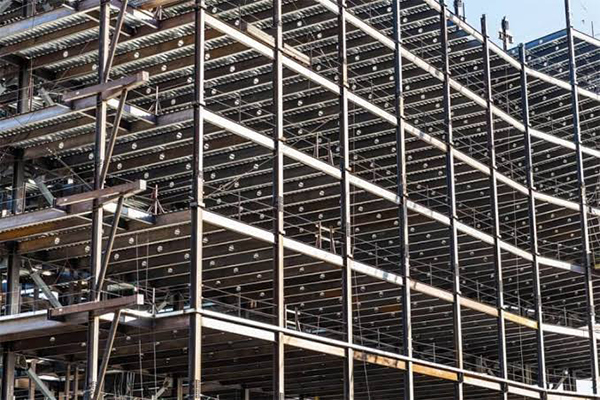

Structure Type	Heavy Steel Fabricated Frame for High-Rise Buildings (Commercial, Residential, Mixed-Use)
Applicable Height	Up to 50 stories (standard); 60+ stories with customized high-grade steel
Primary Steel Grades	Q345B / Q390 / Q420 (GB) or ASTM A572 Gr.50 / A992 (equivalent)
Column Types	Box columns, H-shaped columns, or built-up welded sections
Beam Types	Wide-flange beams, composite beams with shear studs for concrete slab integration
Connection Method	High-strength bolted connections (friction-type) + full-penetration field welds at critical joints
Fabrication Tolerance	±1.5mm for cross-section dimensions; ±2mm for length (CNC controlled)
Welding Standards	AWS D1.1 / GB 50661; all structural welds 100% UT inspected
Non-Destructive Testing (NDT)	UT (ultrasonic) for butt welds; MT (magnetic particle) for fillet and flange welds; RT (radiographic) on request
Surface Protection	Shop-applied anti-corrosion primer (zinc-rich epoxy, 75–100µm) + optional topcoat or galvanizing
Fireproofing Compatibility	Designed to accommodate intumescent coatings or spray-applied fire-resistive materials (SFRM)
Seismic Design	Meets Zone 8–9 (Chinese scale) or IBC seismic categories D/E with proper bracing and ductile detailing
Wind Load Resistance	Up to 0.8 kN/m² (equivalent to Category 14 typhoon) with tuned mass damper provisions if required
Floor System	Composite steel deck with reinforced concrete topping (100–150mm thick)
Core Configuration	Steel braced frame or concrete core hybrid system (design coordinated with client's structural engineer)
Modular Coordination	Column spacing: 6m – 12m; floor-to-floor height: 3.6m – 5.0m (customizable)
Quality Certification	ISO 9001, EN 1090 (EXC3), AWS certified workshop
Third-Party Inspection	SGS, BV, TÜV, or client-nominated agency accepted at all fabrication stages

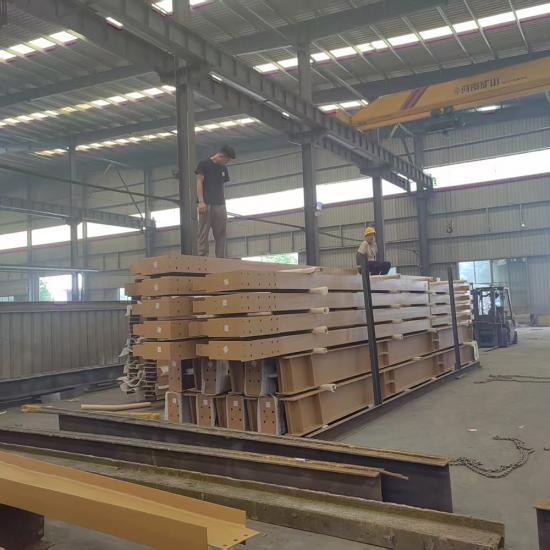

Delivery Format	Pre-fabricated members with clear ID tagging; trial-assembled in workshop with photo/video documentation

Product Application

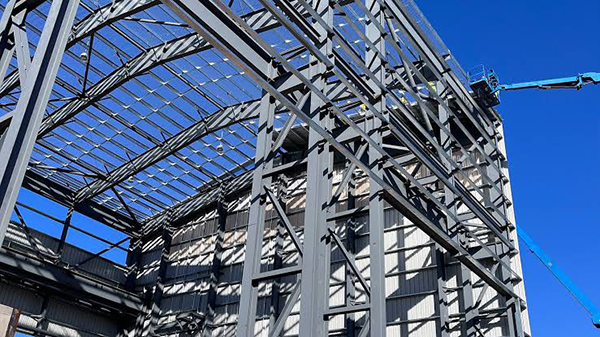

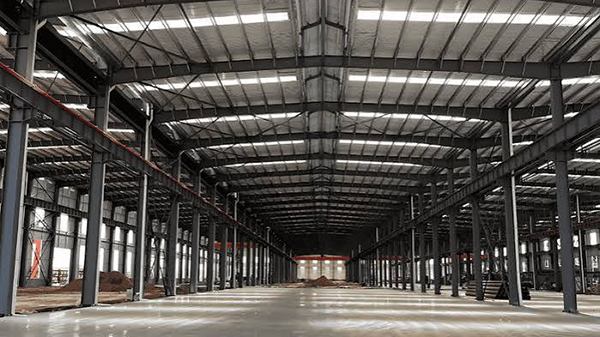

Custom steel structure steel frame buildings serve retail showrooms, office complexes, manufacturing plants, distribution centers, and aircraft hangars. These steel structures also accommodate gymnasiums, supermarkets, warehouses, and workshop facilities. For heavy industry, they support crane-served production bays and equipment enclosures, while commercial projects benefit from column-free interior spaces for flexible layouts.

Production Project


Steel structure building strongpack nigeria	Hazmat warehouse in nigeria

Product Certificate

A CE certificate for steel structures confirms compliance with EU harmonized standards like EN 1090. It covers fabrication, material traceability, and load-bearing safety. Required for structural steel beams, columns, and prefab buildings sold in Europe.

CE certificate

Service

☆If you have the drawings

We can provide you the full service of production, shipment and

Installation guide, which is high quality and low cost.Because we own all kinds of technical facilities, complete test instruments and advanced production processes.

☆If you have no drawings

Our excellent design team will freely design the steel structure buildings for you.If you give us the following information, we will give you an satisfactory drawing.

1. Dimension:Length, width, ridge height, eave height, etc.

2. Doors and Windows:Dimension, quantity, installation position.

3. Local Climate:Wind load, snow load, roof load, Seismic load

4. Insulation materials:Insulated Sandwich panel or Single Steel Sheet

5. Crane beam:If you need it, it will be very helpful that you tell us its technological parameters.

6. Usage:If you tell us the application of light steel structure warehouse, we can exactly design the drawings or match suitable materials for you.

7. Other requirements:Such as fire proofing, transparent roof, etc.Please kindly inform us, too.

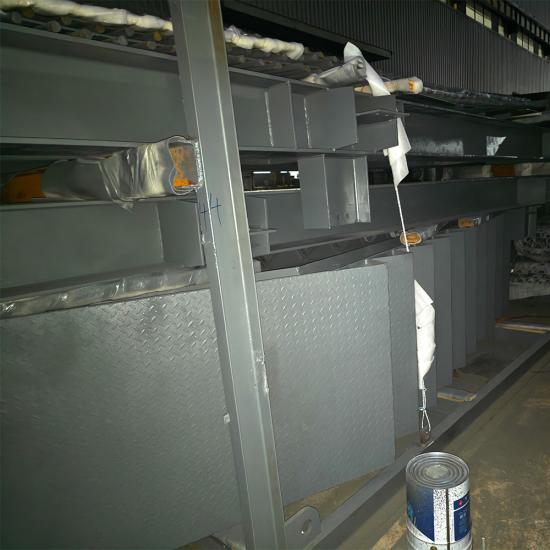

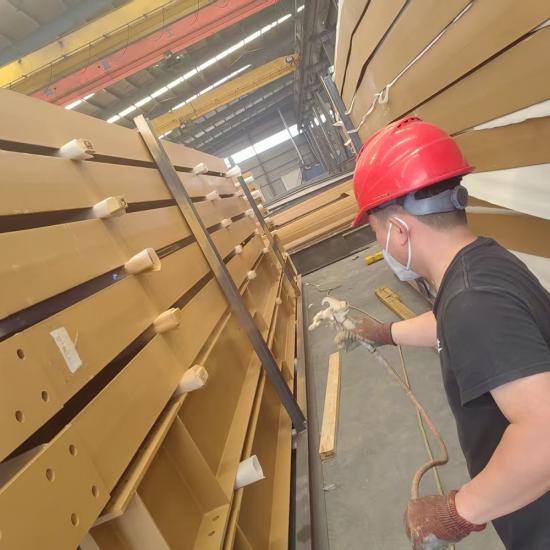

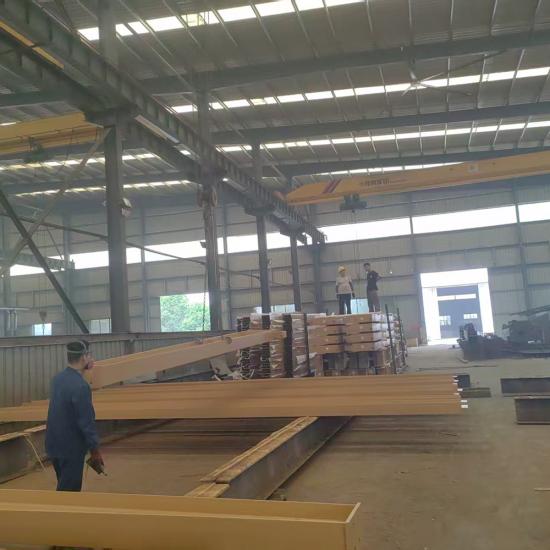

Packing & Delivery

☆ Packing

Seaworthy packing standards:

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

FAQ

Q1. Can you customize the building size, ceiling height, and column spacing according to my specific needs?

A1. Absolutely. We offer full customization on all dimensions. You can choose any length, width, and eave height. Column spacing can range from 6m to 12m depending on your interior layout requirements. Just send us your rough sketch or dimension list, and we will prepare a preliminary drawing for your review.

Q2. What type of roof and wall cladding options do you offer for different climates?

A2. We provide several options: single-layer corrugated steel sheets, insulated sandwich panels (EPS, Rockwool, or PU foam), and standing seam metal roofs. For hot climates, we recommend PU panels with reflective coating. For cold regions, Rockwool insulation with vapor barrier works best. We can also mix materials based on your local weather.

Q3. Do you handle the local building code compliance, or is that our responsibility?

A3. We design according to international standards like AISC, GB, or Eurocode. However, final local permit approval is typically your responsibility. We support you by providing all necessary stamped calculations, shop drawings, and material test certificates. We can also adjust our design to match your local code requirements if you share the specific regulations with us.

Q4. Can I add features like overhead cranes, mezzanine floors, or large roll-up doors later, or must they be installed during initial construction?

A4. We strongly recommend installing crane beams and mezzanine supports during the initial build because they affect column and foundation design. Roll-up door openings can be pre-framed even if you install the doors later. Just tell us your future expansion plans now, and we will reinforce the frame accordingly at minimal extra cost.

Q5. What is your minimum order quantity for a custom design, and do you offer a sample project reference?

A5. We have no strict MOQ for custom buildings, but we typically start at 500m² for efficient production. We can show you reference projects of similar size and use, including warehouses, workshops, and retail stores. Photos, videos, and even client contact references are available upon request.
