50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaocolor:
Customized
Product introduction
What is Australian Style sandwich panels?
Australian-style sandwich panels, often used for roofing and walls in structures like patios, carports, and commercial buildings, are prefabricated panels featuring two outer metal sheets with a relatively thick, high-density polystyrene foam core (EPS-FR, fire retardant). These panels are designed for their thermal insulation, acoustic properties, and ease of installation, offering a faster build time compared to traditional construction methods.
Optional core materials:
Glass Wool;Rock Wool; EPS
Product advantages
☆Excellent Fire Resistance
A-grade fire rating with outstanding flame retardancy and thermal insulation.
☆Concealed Fastener System
Vibrant colors, requires no surface decoration.
☆Rapid Installation
Flexible and quick assembly, significantly reduces construction time.

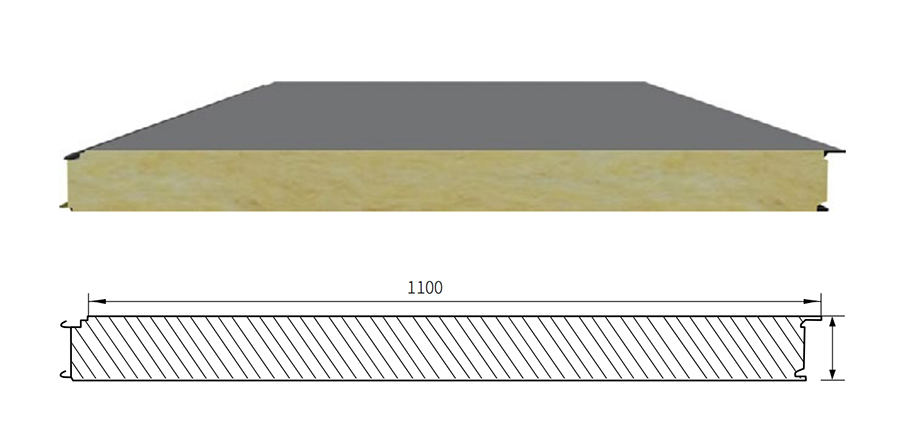

Product specifications
|
Panel type |
Wall sandwich panels |
||
|
Effective width |
1100mm |
||
|
Panel thickness |
50- 100mm |
||
|
Coating type |
PE, SMP, HDP, PVDF |
||
|
Steel sheet (GI/PPGI/PPGL) |
0.40-0.75 mm |
||
|
Aluminum metal sheets |
0.60-1.20 mm |
||
|
Surface sheets |
Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm |
||
|
Aluminum metal sheets:0.60-1.20 mm |
|||
|
Aluminum foils:0.065 mm |
|||
|
PVC sheets |
|||
|
Core material |
Glasswool |
Rockwool |
EPS |
|
Core density |
12-64 kg/m3 |
80-150 kg/m3 |
10-40 kg/m3 |

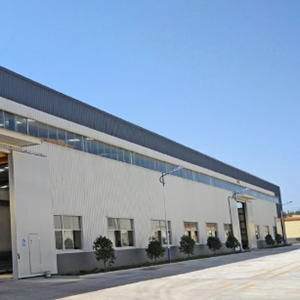

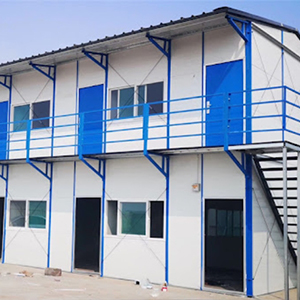

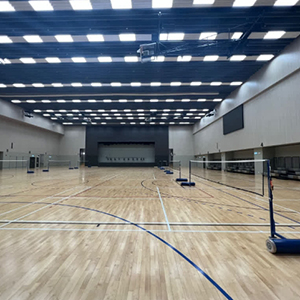

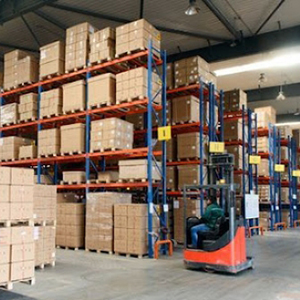

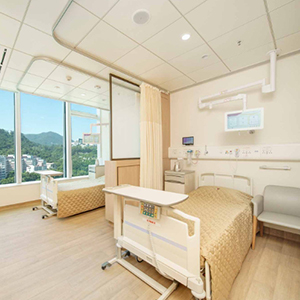

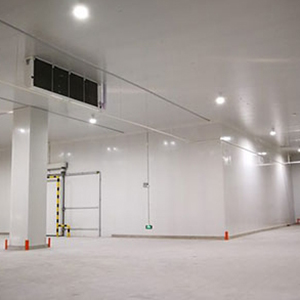

Product applications
These sandwich panels are ideal for large-scale industrial plants, warehouses, stadiums, supermarkets, hospitals, cold storage facilities, prefab houses, building extensions, clean rooms, and other spaces requiring thermal insulation & fireproofing.
|
|
|
|
|
|
|
|

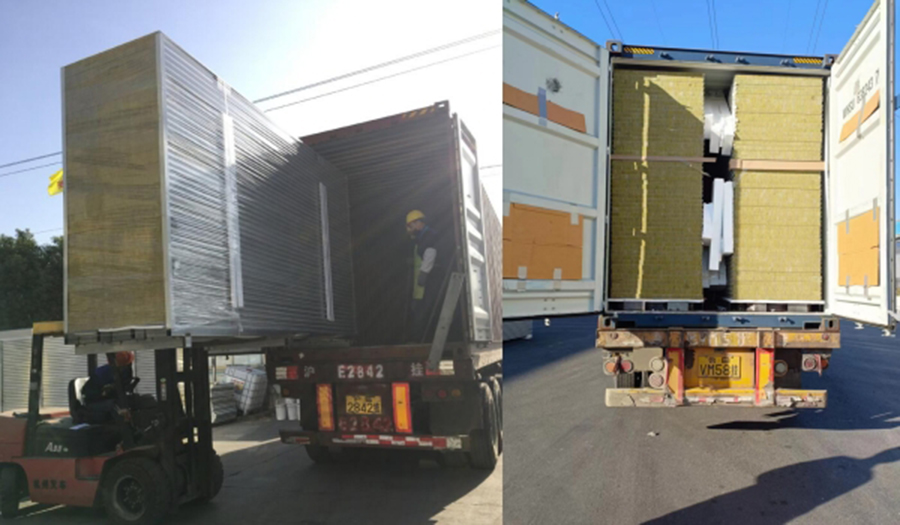

Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Mineral wool sandwich panels providing best sound and fire protection for buildings; MOQ 5000 meters;
