PU sealing end wall sandwich panels

home /

Walling System

/

PU sealing end wall sandwich panels

/60mm Hidden Screws PU Sealing End Rockwool Sandwich Panel

60mm Hidden Screws PU Sealing End Rockwool Sandwich Panel

This PU sealing rockwool sandwich panel is good for soundproof, fireproof, heat insulation,etc. MOQ:500M²/Color & Size
  • item no.:

    1000
  • lead time:

    7-15 days
  • product orgin:

    China
  • shipping port:

    Xiamen / Qingdao / Tianjin,China
  • payment:

    T/T; LC at sight
  • color:

    Customized
  • product details

Features

☆ Fireproof: with Grade A1 level, the high temperature reaches 150°;

☆ Heat & thermal insulation: the coefficient of thermal conductivity is 0.037-0.043w/m.k;

☆ Sound absorption: excellent in sound proof;

☆ Chemical resistance, anti corrosion;

☆ Energy conservation, environmental protection;

☆ Light weight, easy to install, save construct time, and reduce building cost.


Joint way

Panel joint: Concealed hidden screws type,

Surface can be with 20mm decorative seam or seamless,


Composite panel texture 3 options

Sandwich panel texture


Specification

Product name :

60mm PUR sealing rockwool sandwich panel

 Effective width:

1000mm

Density :

38 ~ 42 KG/M³ for PU;

80 ~ 150 KG/M³ for Rockwool;

Steel sheet thickness :

0.40 ~ 0.75 mm

Stainless steel sheet thickness :

0.40 ~ 0.70 mm

Al-Mg-Mn alloy metal thickness :

0.70 ~1.20 mm

 Regular color:

White grey, Sea blue, Sliver grey, Dk grey, Iron grey, also can be customized

 Coating type choice:

                                   PE/ PVDF/  HDP/ SMP, etc.

 Available length:

                                   20FT container:  ≤ 5.95m

40FT container: ≤ 11.95m


Application

Largy size factory buildings, storages, exhibition halls, gymnasiums, visual hall, concert hall, music hall, movie theater,cinema, studio, monitor room, meeting room, dance hall, ballroom, Karaoke chamber, etc.

If you have special designs,we can have our engineers to support your design work.

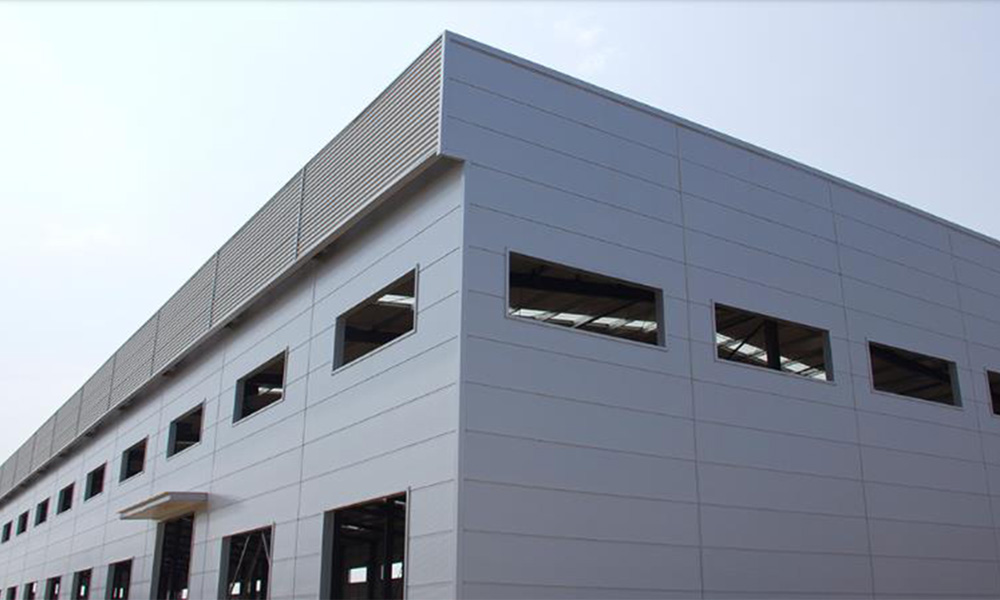

Rendering




Packing & Delivery:

 Packing:

1)Number of panels per packages for your reference:

Panel thickness/mm

Panels per package/PCs

Remark

50

22

Standard package weight:3-5/ton for each package

75

15

100

11

150

7

200

6

2)Seaworthy packing standards:

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.


 Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
