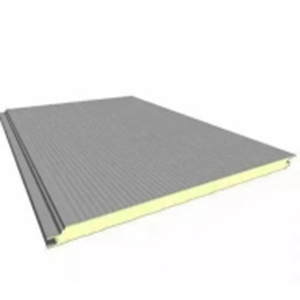

50mm pioneer coloured PUR/PIR insulated wall sandwich panels
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
What is PU Sandwich Panels?
Polyurethane Sandwich Panel, also known as PU Panel, is a composite material composed of three layers of polyurethane foam sandwiched between two metal side skins.
PU Sandwich Panels (Polyurethane Sandwich Panels) are prefabricated building materials consisting of two metal facings (typically steel or aluminum) bonded to a rigid polyurethane foam core. They are widely used for walls and roofs in industrial, commercial, and cold storage construction due to their superior thermal insulation (λ=0.022-0.028 W/mK), lightweight properties, and fast installation. PU panels meet international fire safety standards (e.g., EN 13501-1 Class B) while providing moisture resistance and structural stability.
Product advantages
|
|
Noise Reduction Expert |
Closed-cell structure effectively absorbs sound, reducing noise pollution for quieter spaces. |
|
|
Thermal Insulation Pro |
PU panels' ultra-low thermal conductivity (λ=0.022W/m·K) ensures superior temperature control and energy efficiency. |
|
|
Durable & Stable |
High-strength construction resists deformation/cracking with easy-install tongue-groove systems for lasting performance. |
|
|
Fire Safety Master |
Flame-retardant PU core achieves self-extinguishing Class B1 fire rating (EN 13501-1 standard). |
Product specifications
|
Specification |
Details |
|
Core Thickness |
120 mm (PU/PIR ) |
|
Panel Width |
Standard 1000mm,1120mm |
|
Panel Length |
20FT container: ≤ 5.95m |
|
Density of Core |
40 kg/m³ |
|
Thermal Conductivity |
≤ 0.022 W/(m·K) |
|
Fire Rating |
Class A2 - s1 (excellent fire resistance) |
|
Surface sheets |
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel |
|
Aluminumsheets/Al-Mg-Mnalloymetal sheet |
0.70 - 1.20 mm |
|
Steel thickness |
0.40 - 0.70 mm |
|
Stainless steel |
0.40 - 0.60 mm |
Product ribs
There are 4 different kinds of panel surface treatment (ribs),we named them as micro ribs, wide ribs, pure flat, and embossed. You can choose which type is suitable for your project.
Product applications
|
|
|
|
|
|
|
Used for air conditioners, cold storages, cold rooms, light rooms, low-temperature boxes, safes; thermal insulation, sealing, etc. in industrial sectors such as construction, transportation, petroleum, chemical industry, electric power, and refrigeration. |
|
Packing & Delivery
☆ Packing
·Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
Xiamen Yumin Xincailiaokeji Co., Ltd. is a leading integrated manufacturer and trader specializing in high-quality steel structure products from China. With a strong global presence across America, Europe, Southeast Asia, and Africa, we pride ourselves on delivering superior products, competitive pricing, and exceptional customer service.
Why Choose Us?
1. Dedicated Sales Support – Personalized 1-on-1 service
2. Factory Direct Pricing – Competitive costs with reliable supply
3.Expert Engineering Team – Professional technical guidance
4. Comprehensive After-Sales – Continuous support & solutions
With different types of joint way,for use in outside wall of industrial commercial building, refrigerated rooms with positive temperature, and partition in general.MOQ:500M²/Color & Size
The PU sandwich wall panel is widely used in the large-sized factory buildings, warehoused, cold room, storages, parking shed, exhibition halls, gymnasiums, etc. MOQ:500M²/Color & Size
35mm thick PU wall sandwich panels can be 930mm,1000mm or 1120mm.This is an affordable option.MOQ:500 M²/Color & Size
Insulated Polyisocyanurate (PIR) sandwich panels in 75mm thickness,is a favorable choice for cold room projects. MOQ:500 M²/ Color & Size.
100mm is a regular thickness for cold room panels,our tongue and groove joint PIR panel can be your best choice. MOQ:500 M²/ Color & Size
PIR sandwich panel with high density, ranges from 45-55 kg/m³, the thermal ocnductivity as low as 0.018W/mK, applicable for cold room storage facilities. MOQ: 500㎡ color&size
