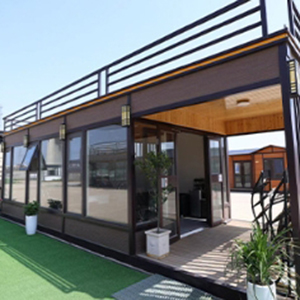

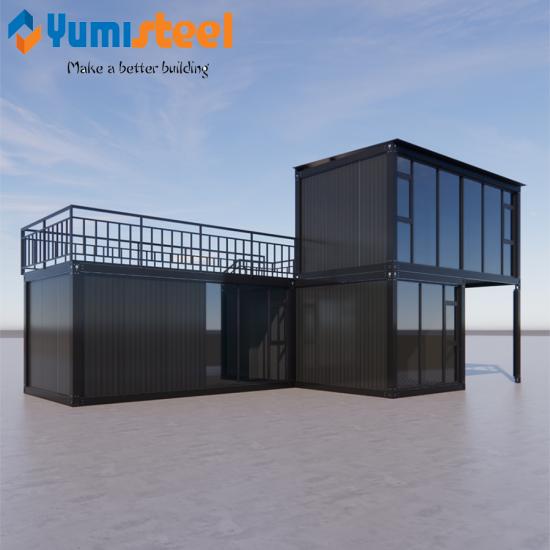

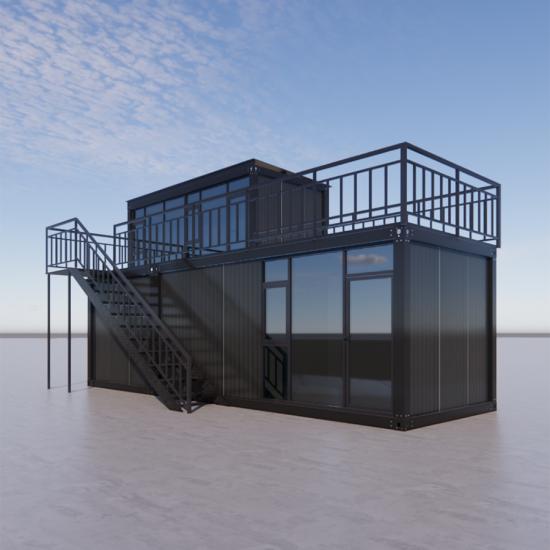

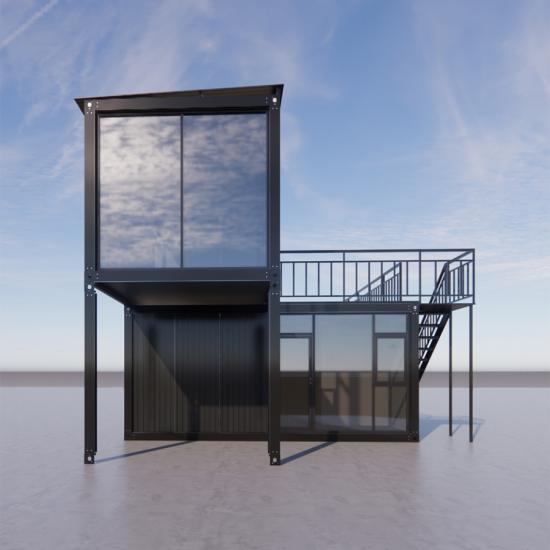

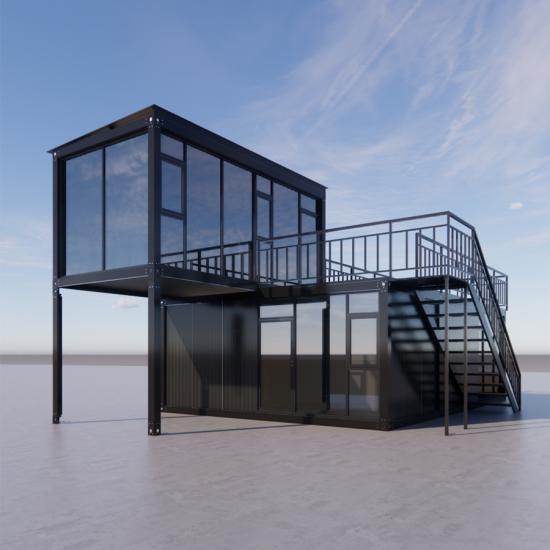

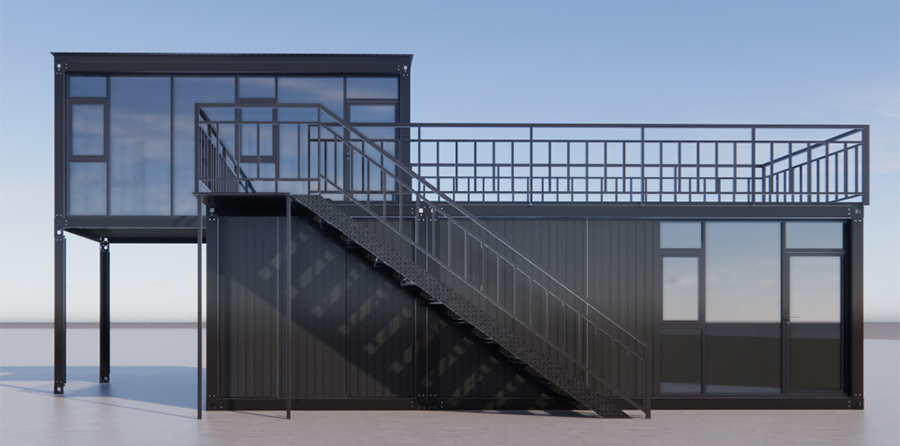

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
CustomizedProduct introduction
What is flat container?
A flat container house is a prefabricated modular home made from standard shipping containers that have been modified into single-level living spaces. Unlike stacked designs, it features a low-profile, ground-level layout while maintaining the container's structural durability. Ideal for compact homes, offices, or temporary housing, it offers quick installation, portability, and customization options (e.g., insulation, windows, doors) while retaining the industrial-chic aesthetic of steel containers.
Product specification
Material list |
||||||
S/N |
Items |
Material |
Description |
Unit |
QTY |
Remark |
1 |
Floor beams |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
2 |
Floor Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
10.00 |
|
|
3 |
Floor Substrate |
Fiber Cement Board 18mm,1177X2820mm X 5 PCs |
㎡ |
14.40 |
|
|
4 |
Floor Finish |
1.60mm Full PVC Roll |
㎡ |
14.40 |
|
|
5 |
Roof |
Main Frame |
Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks |
PC |
4.00 |
|
6 |
Roof Joist |
Cold-formed galvanized steel profile,1.20mm galvanized steel tubes |
PC |
9.00 |
|
|
7 |
Roof panels |
0.60mm thick roof steel panels,360° biting waterproof treatment |
㎡ |
14.40 |
|
|
8 |
Roof insulation |
75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density |
㎡ |
14.40 |
|
|
9 |
Ceiling panels |
0.30mm thick roof steel panels |
㎡ |
12.60 |
|
|
10 |
Steel post |
Main Frame |
Composed of 2.50mm thick galvanized steel sections |
PC |
4.00 |
|
11 |
Connectors |
2.0mm galvanized steel |
PC |
8.00 |
|
|
12 |
L shaped steel beam Stiffener |
PC |
8.00 |
|
||
13 |
Wall(External+Partition) |
Wall panels |

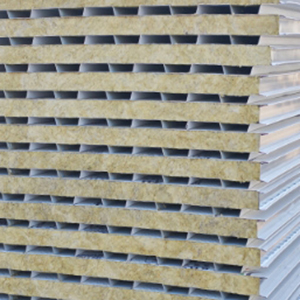

50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 |
㎡ |
50.54 |
|
14 |
Corner trims |
0.50mm steel flashing |
PC |
4.00 |
|
|
15 |
Door(External) |
Single door |
Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm |
Set |
1.00 |
|
16 |
Window |
Glass type:single glazed glass,6 mm thickness; |
Set |
2.00 |
|
|
17 |
Downspout |
Size:∮50mm, to be installed in the steel posts |
PC |
4.00 |
|
|
18 |
Other accessories |
Screws |
Self drilled screws |
Set |
1.00 |
|
19 |
Sealant |
|
Tube |
2.00 |
|
|
20 |
Electricity |
3 sets of Five-hole sockets; |
Set |
1.00 |
|
Product advantages
|
|
|
Strict Material Selection |
Easy Installation |
Customized Styles |
High-strength materials with exceptional load-bearing capacity, quenched and forged for durability. |
Quick assembly, customizable mobility, and reusable design for flexibility. |
Diverse designs, one-on-one customization, and multiple style options available. |
Product application

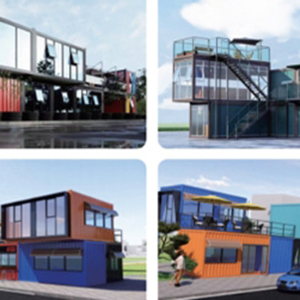

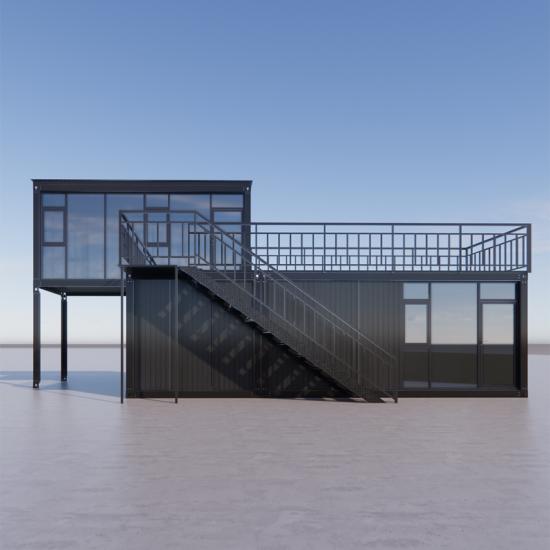

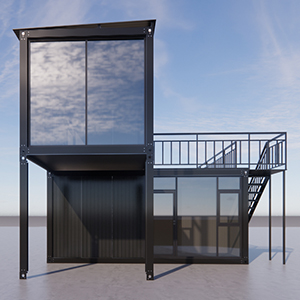

Our prefabricated container houses and double-floor container buildings serve multiple purposes: vibrant street markets, stylish hotels/B&Bs, modern private homes, modular container complexes, secure produce storage, and eye-catching theme park entrances. Durable, customizable, and quick to install.
|
|
|

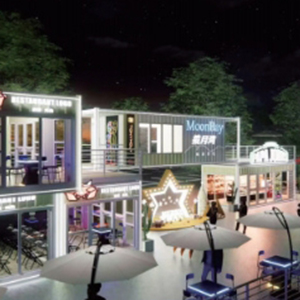

Street Markets,modular pop-up retail spaces |

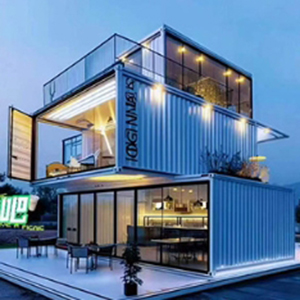

Boutique Hotels/B&Bs,compact lodging solutions |

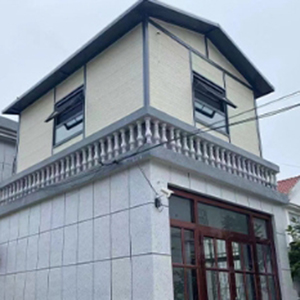

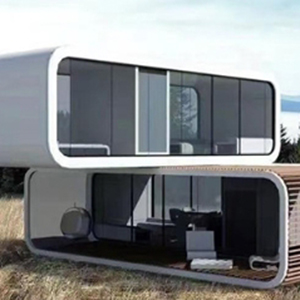

Private Residences,customizable container homes |
|
|
|
Modular Complexes,scalable multi-unit configurations |
Apple Orchards,secure storage cabins |

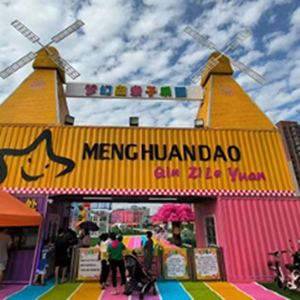

Amusement Park Entrances,iconic structural gateways |
Packing & Delivery

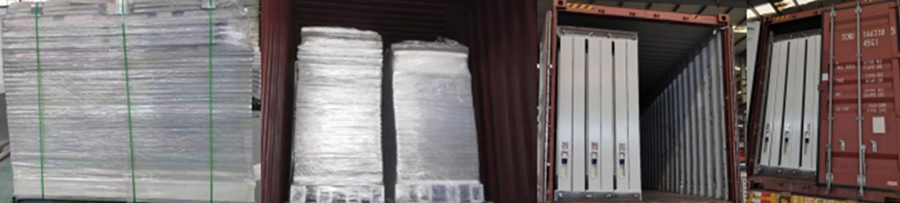

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
