Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction
The Expandable Folding Container House Flat Top features a collapsible steel frame and a flat roof design for easy stacking and transport. Engineered for rapid deployment, it unfolds from compact shipping dimensions to full living space within hours. Manufactured from weather-resistant galvanized steel and insulated panels, this flat top expandable folding container house is ideal for job sites, emergency shelters, or modular cafes.
Product specification
20 feet flat top expandable folding container house configuration parameters
Product
20 feet
House type
One Hall
Expanded size
L5900*W6420*H2450
Number of people accommodated
2-4 people
Intermal
L5740*W6260*H2250
Power consumpton
12KW
Folded Size
L5900*W2200"H2450
Total net welght
3.1 tons
Floor area
38m²

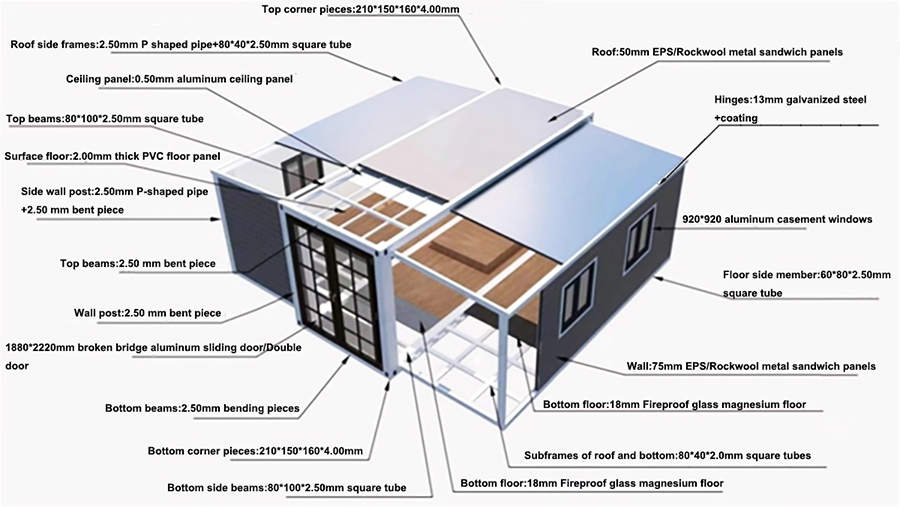

Frame tnucture
No.
Name
Conten
Specifcatons
1
Main frame
Top side beam
80*100*3.0mm square tube outsourcing 2.0 bending parts
2
Top beam
80*100*3.0mm square tube wrapped with 2.0 bending parts
3
Bottom side beam
80*100*3.0mm square tube wrapped with 2.0 bending parts
4
Bottom beam
80*100*3.0mm square tubewrapped with 2.0 bending parts
5
Hanging head
12.8 Portable Steel Anti detachment Hook
6
Steel column
80*100*3.0mm square tube outsourcing 2.0 bending parts
7
Side frame
Top frame
50*100*2.5mm square tube outsourcing 2.0 bending par
8
40*80mm*1.8mm P-shaped pipe
9
Bottom frame
80*100*3.0mm square tube outsourcing 2.0 bending parts
10
Folding hinge
130mm galvanized hinge
11
Overall framework protective coating
Spray
Electrostatic spray molding/straight white plastic powder
12
Roof
Main external top plate
T50mm EPS color steel plate+corrugated veneer t0.4mm
13
Outer top plate of the side wing
T100mm EPS color steel plate+corrugated veneer t0.4mm
14
Internalceiling panels
200 type ceiling panel
15
Wallboard
Side walls,front and rear
T65mm EPS color steel plate
16
Inner partition board
T50mm EPS color steel plate
17
Ground
Center floor
18mm thick fireproof cement fiber floor
18
Floor on both sides
Bamboo plywood 18mm thick
19
Doors and windows
Plastic steel sliding window
920*920mm
20
Steel single door
840*2030mm
21
Electrical system
Circuit breaker system
One 32A leakage protector.Voltage 220V,50HZ
22
Light
Bull 30*30 flat lamp,large ceiling lamp
23
Socket
Standard internationalthree hole and five hole sockets
24
Light Switch
Double open,single key switch
25
Wiring
Incoming Line 6²,Air conditioning socket 4²,Ordinary socket 2.5²,Lighting 1.5²
26
Accessory
Including top corner line skirting line corner wrapping waterproof tape sling structural adhesive and glue gun
Product Layout
model
dimensions
(fully galvanized)
(fully galvanized)
(socket standards can be configured according to customer requirements)
(switch standard can be configured according to customer requirements)
(Circuit that meets certification requirements can be customized according to the
country)

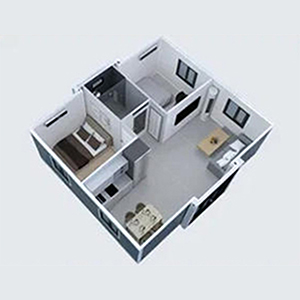

20ft

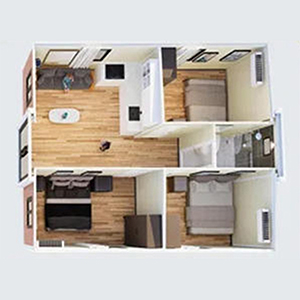

30ft

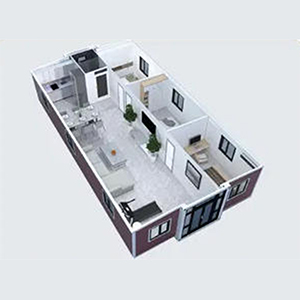

40ft

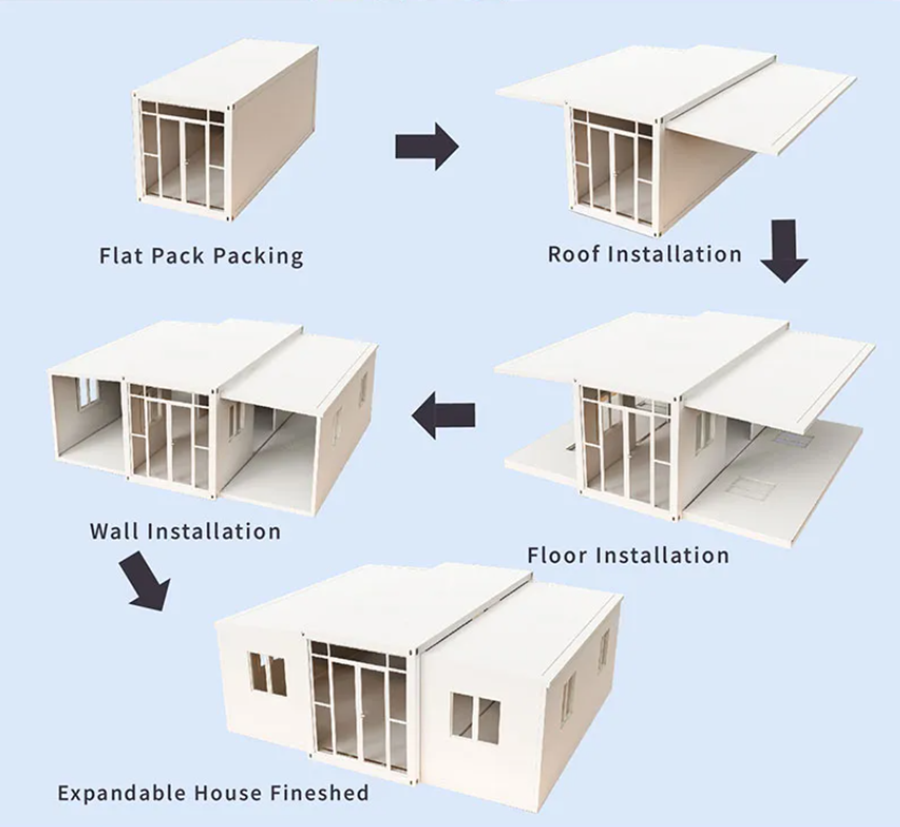

Product Installation
Yumisteel container houses are certified with ISO and CE standards, ensuring high-quality prefabricated structures that meet international safety and performance requirements for reliable, compliant modular buildings.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
FAQ
1:Are you a factory?
Yes, we have our own factory with multiple production lines for steel structures, pipe trusses, grid structures, light steel and heavy steel products.
2: What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3: How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4: Why should you buy from us not from other suppliers?
We have rich design experience in the fields of light steel villas, prefabricated buildings, container houses, etc. We independently produce sandwich panels and steel to ensure that you receive stable quality and cost-effective products.
5: What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure.
Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or anti-corrosive coating.
