Product introduction

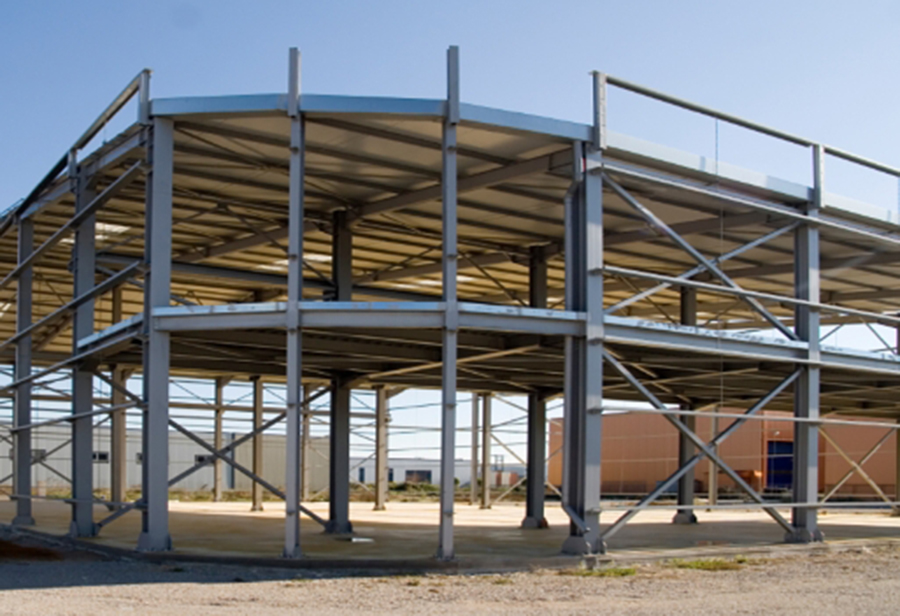

hot-dip galvanized steel structure

What is hot-dip galvanized steel structure ?

Hot-dip galvanizing is like giving a steel structure a super strong, long-lasting shield. The steel is dipped into a bath of molten zinc, which coats it completely. This zinc coating acts as a powerful barrier that fights off rust and wear incredibly well. Because it's so tough and doesn't need maintenance, it's the perfect choice for things that are always outside and exposed to the weather, like bridges, highway barriers, and power line towers.

Product specification

Item	Name	Specification
Main steel frame	Column	Welded or hot rolled Section Steel
Main steel frame	Beam	Welded or hot rolled Section Steel
Secondary frame	Purline	Galvanized C/Z purline
	Column & beam brace	Round bar/circular steel tube
	Tie rod	Circular steel tube
	Flying brace	Angle steel
	Tie bar	Round bar
Maintenance system	Roof panel	0.326~0.6mm color corrugated sheet or 50~100mm EPS / rock wool / PU sandwich panel
	Wall panel	0.326~0.6mm color corrugated sheet or 50~100mm EPS / rock wool / PU sandwich panel
	Window	Aluminum Alloy Window / PVC Window
	Door	Sliding door or Rolling metal Door
Accessories	Gutter	Colour steel / galvanized steel / stainless steel
	High strength bolts	High strength steel
	Anchor bolt	M24~M65
	Others	Common bolt,skylight board,downpipe ventilation ball,glass wool,etc.
Surface Finishing	Laser/Auto-welding/Punching/Bending etc
OEM Service	Nature/Powder Painting/Galvanizing
Material	Q235B/Q355B or Customized

How the Process Works

☆Surface Preparation

The steel is thoroughly cleaned to remove any dirt, oil, or rust that could interfere with the coating.

☆Melting

The steel components are then immersed in a bath of molten zinc, heated to approximately 450°C (840°F).

☆ Metallurgical Reaction

A chemical reaction between the molten zinc and the steel creates a series of zinc-iron alloy layers.

☆ Outer Layer

A final layer of pure zinc forms on top of the alloy layers, creating a complete protective coating.

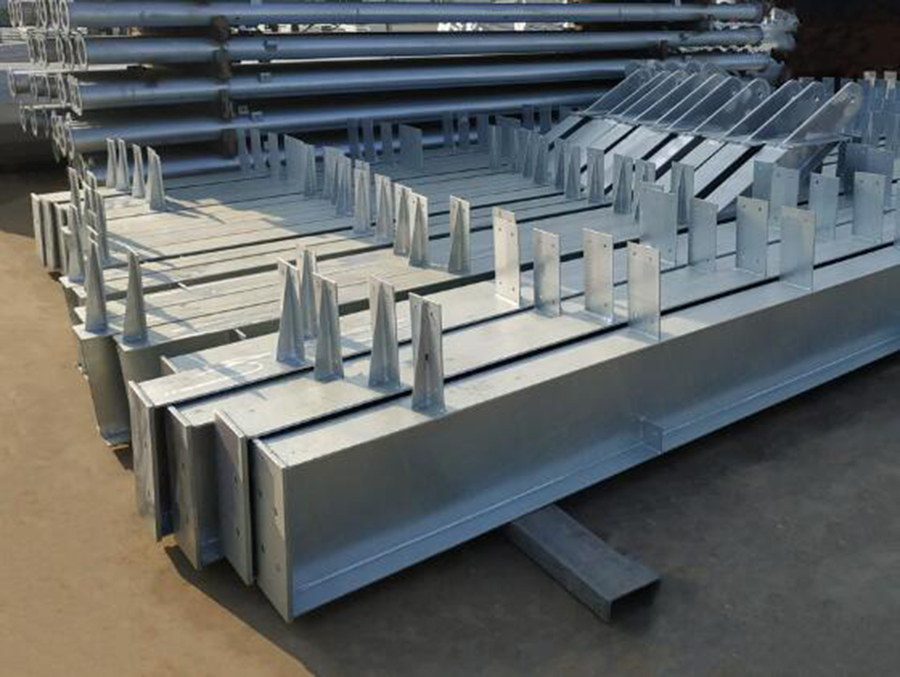

hot-dip

Product advantages

☆Superior Corrosion Resistance

The hot-dip galvanized coating provides a robust, sacrificial barrier against moisture and chemicals, ensuring the carbon mild steel frame resists rust and degradation for decades, even in harsh environments.

☆Excellent Wear Resistance

This welded metal structure offers exceptional abrasion and impact resistance. The hardened zinc layer protects the mild steel from physical damage, maintaining its integrity under demanding conditions.

☆Long-Term Durability

Combining the strength of welded carbon steel with the protective galvanized layer, this frame delivers outstanding longevity and requires minimal maintenance, reducing lifecycle costs.

☆Good Ductility & Strength

The base mild steel material provides reliable ductility, allowing the frame to absorb stress and deform slightly without fracturing, which is crucial for structural safety and adaptability.

Product application

☆Outdoor Structures

Bridges, fences, and outdoor building frameworks benefit from the long-lasting protection against the elements.

☆Electrical Infrastructure

Towers for power transmission and distribution are frequently hot-dip galvanized to withstand harsh outdoor conditions.

☆Industrial Equipment

Various equipment used in industrial settings also utilize the corrosion protection of hot-dip galvanized steel.

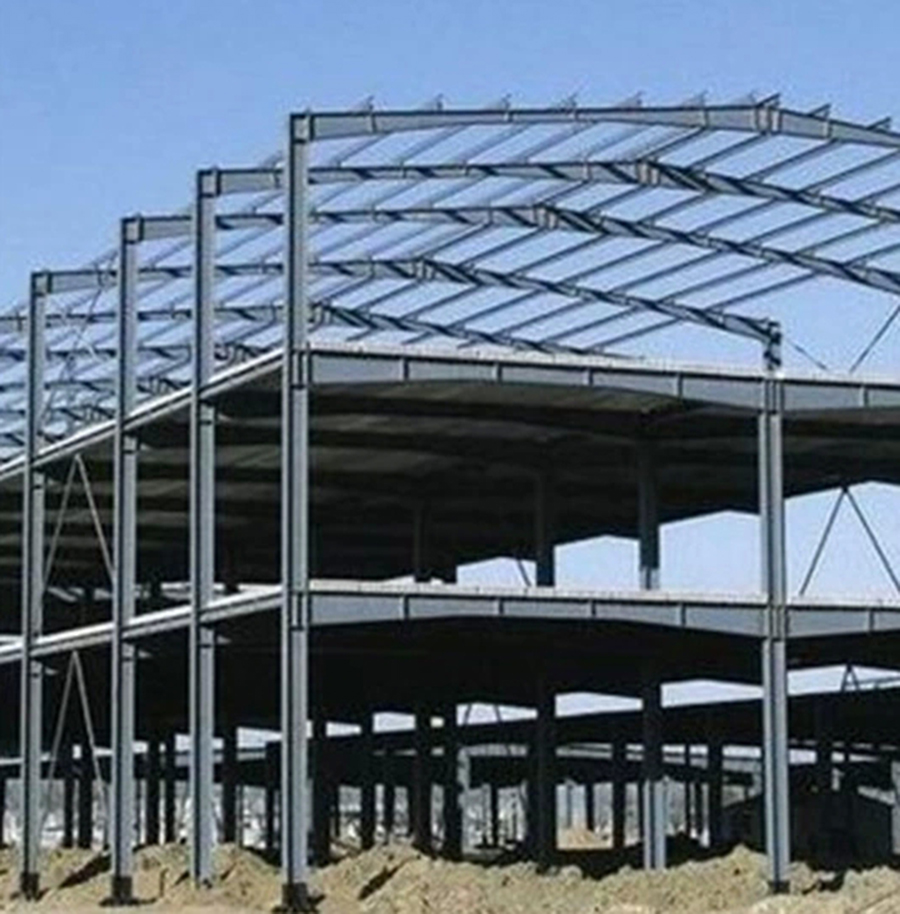

Outdoor Structures

Packing & Delivery

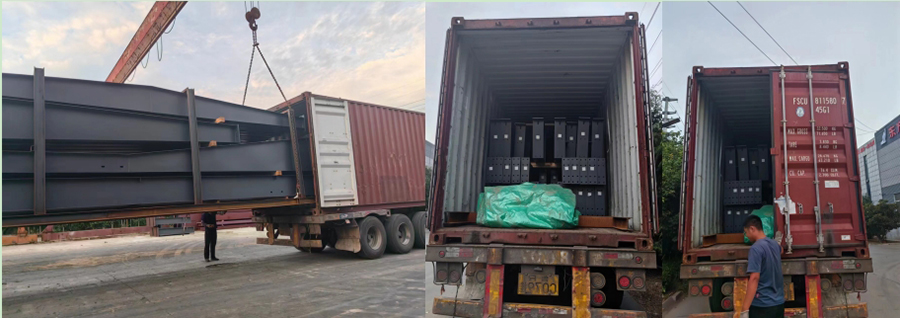

☆ Packing

Seaworthy packing standards:

steel structure packing

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service

Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
