Fast installed steel bar trusses girder for high rise buildings
Steel truss decking can saving 60 ~ 70% labor cost,so it’s also called speed deck. MOQ:500M²/Size
item no.:
N/Aproduct orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product Introduction

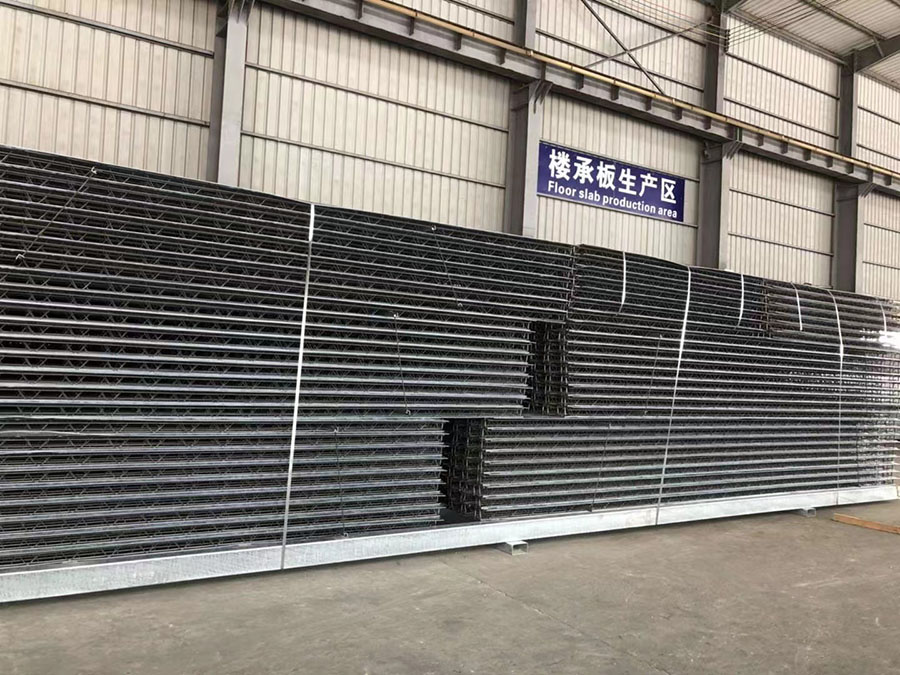

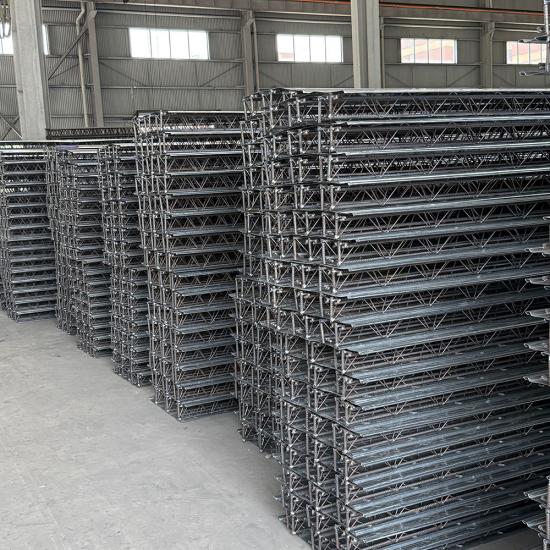

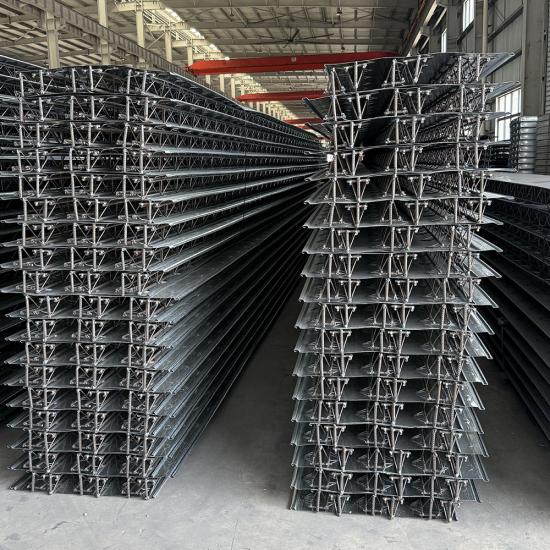

What is Steel Bar Truss Decking?
Steel bar truss decking is a prefabricated composite floor system consisting of a steel bottom plate welded with an open steel bar truss. It serves as both permanent formwork and tensile reinforcement for concrete slabs. This lightweight, high-strength decking accelerates construction, reduces on-site labor, and delivers excellent fire resistance and load-bearing capacity for multi-story steel-framed buildings and industrial projects.
Product Specification
|
Truss deck |
Specification |
|
Bottom sheet width(mm) |
600 |
|
Length(m) |
1.0-11.9 |
|
Floor thickness(mm) |
100-300 |
|
Steel truss height(mm) |
70-270 |
|
Concrete coverthickness(mm) |
15 (Top&Bottom of truss is 15mm) |
|
Base sheet thickness(mm) |
0.50~0.80 |
Product Advantages
☆This fireproof composite steel truss floor decking sheet delivers 2 to 4 hours of fire resistance, meeting strict safety codes without extra coatings or sprays.
☆Prefabricated steel truss decking sheets arrive ready for immediate concrete pouring, cutting floor installation time by up to 30 percent.
☆The steel bar truss design enables longer spans and thinner slabs while supporting heavy live loads in multi layer building construction.
☆Lightweight panels require no temporary props for spans up to 3 meters, reducing on-site labor and simplifying high-rise logistics.
☆Combining formwork, reinforcement, and fire protection in one system lowers material waste and foundation costs per square meter.
Production process
Packing & Delivery
☆ Packing
Seaworthy packing standards:
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
