Competitive Price Best Price Building Material Galvanized Steel Corrugated Wall Sheet For Sale

Best Price Building Material Galvanized Steel Corrugated Wall Sheet

Get our best-price galvanized steel corrugated wall sheet for durable, affordable, and low-maintenance building cladding.

product orgin:

China

shipping port:

Xiamen/Qingdao

payment:

T/T;L/C at sight

color:

Customized

product categories

new products

product details

Product introduction

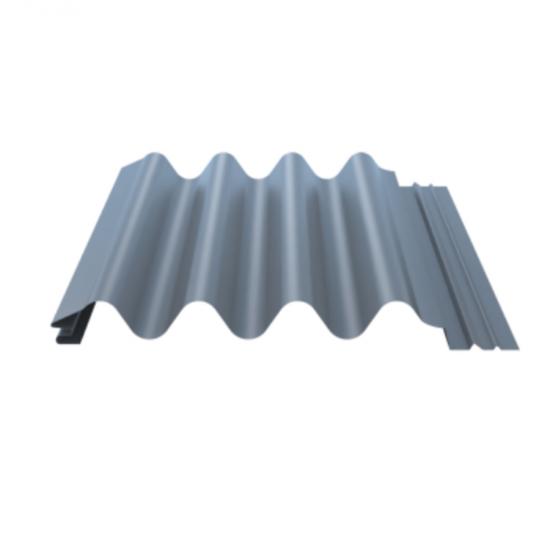

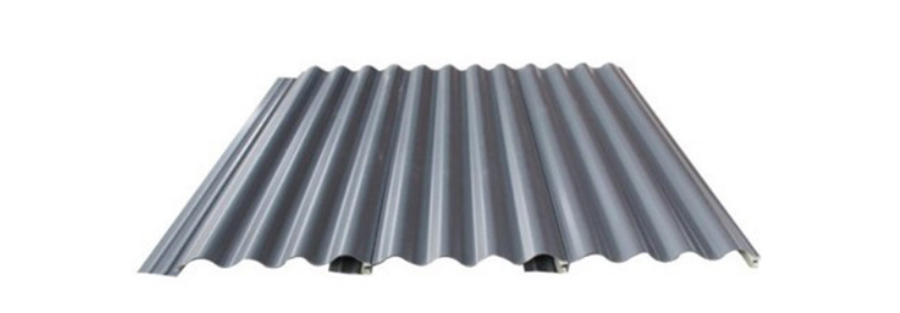

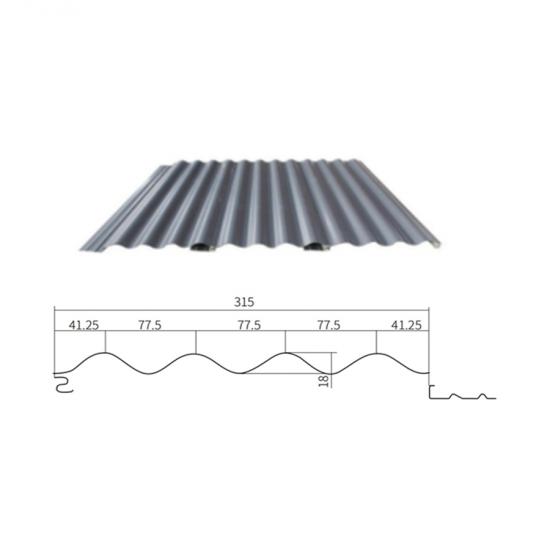

YX18-77-315 Corrugated Sheet

The YX18-77-315 corrugated sheet is a narrow-profile, high-strength galvanized steel panel with a 315mm nail spacing. Its wave-arc design offers excellent mechanical properties, including typhoon resistance. Featuring concealed fasteners and customizable colors, it ensures quick installation, effective weatherproofing, and extended durability for wall cladding applications.

Product Characteristics

☆Features a wave-arc design with smooth contours, fully meeting modern architectural creativity.

☆Narrow profile with 315mm nail spacing, high strength, and superior mechanical properties, providing significant typhoon resistance.

☆Aesthetically pleasing with a wide range of customizable colors, offering broad decorative versatility.

☆Quick and simple installation: bottom-to-top sequential placement effectively prevents vertical lap leakage.

☆Used for on-site composite wall systems, efficiently resolving issues like rain penetration and water overflow.

☆Concealed nail installation ensures a clean appearance, eliminating exposed nail holes as rust sources and extending panel lifespan.

☆Raw material supplied in 500mm widths, perfectly halving 1-meter panels for optimal material utilization.

Product specifications

Model NO:	YX18-77-315
Rib height :	18mm
Rib distance :	77.5mm
Modular width :	315mm
Feeding width :	500mm
Available thickness :	0.4-0.8 mm
Available length :	20FT container:≤5.95m 40FT container: ≤ 11.95m
Available material :	PPGI/ PPGL/ Aluminum sheets/AI-Mg-Mn alloy metal sheets
Surface treatment :	Original pre-painted color or stone glazed looking
Coating type:	PE, PVDF, HDP, SMP,etc.

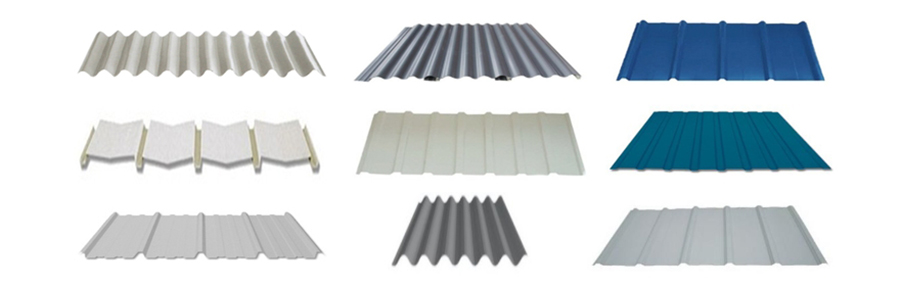

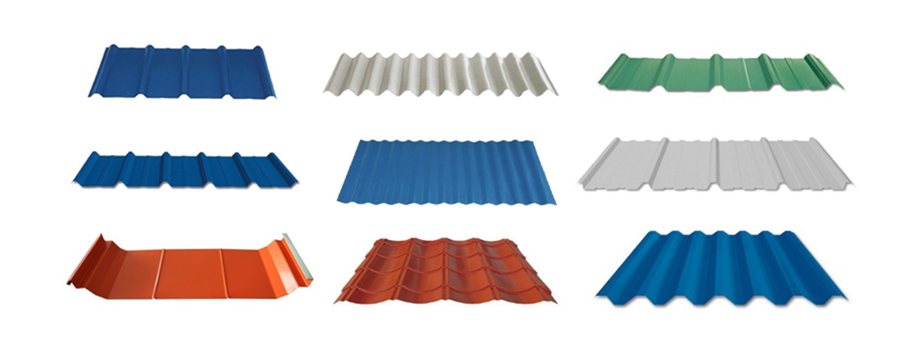

Other models

Other Corrugated Sheet model

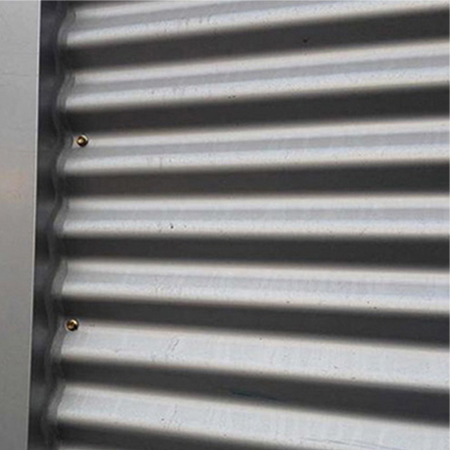

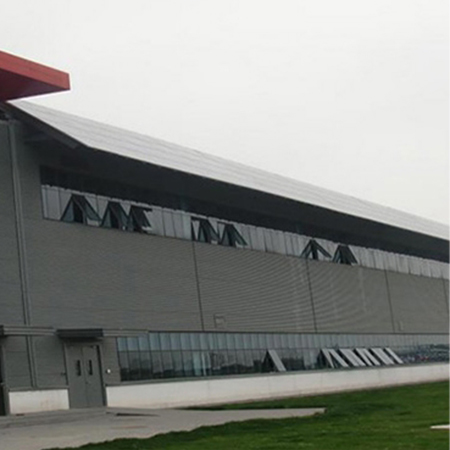

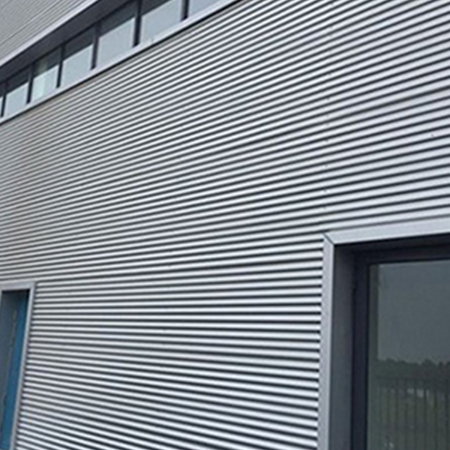

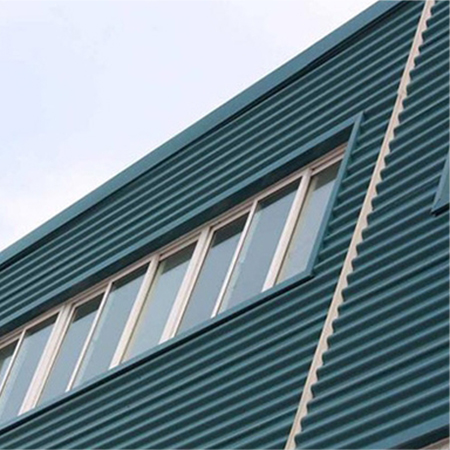

Product applications

The YX18-77-315 galvanized steel corrugated sheet is ideal for cost-effective and durable construction, this galvanized steel corrugated wall sheet is widely used for industrial warehouses, agricultural buildings, commercial facades, and perimeter fencing. Its excellent weather resistance and low maintenance make it perfect for structural cladding and partition walls in diverse environments.

Packing & Delivery

☆ Packing

·Seaworthy packing standards:

If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.

☆ Delivery

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.

Service&Support

☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
