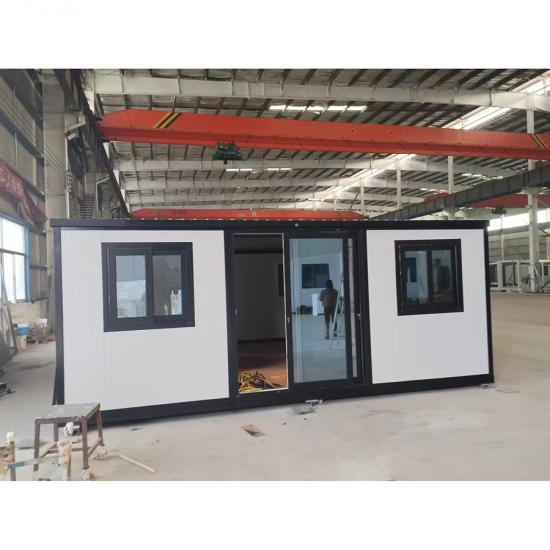

Prefabricated modern luxury flat pack container house
20ft prefabricated container house is built with cold-rolled steel plates and use sandwich panels for wall insulation. MOQ:1 set
product orgin:
Chinashipping port:
Xiamen/Qingdaopayment:
T/T;L/C at sightcolor:
Customized
Product introduction
What is expandable folding container house?
Expandable Folding Container House is a type of modular home constructed from repurposed shipping containers that can be expanded or folded to increase or decrease its usable space. These houses are designed with a mechanism that allows them to be transported in a compact state and then expanded upon arrival, creating a larger living or working area.
Product specification
|

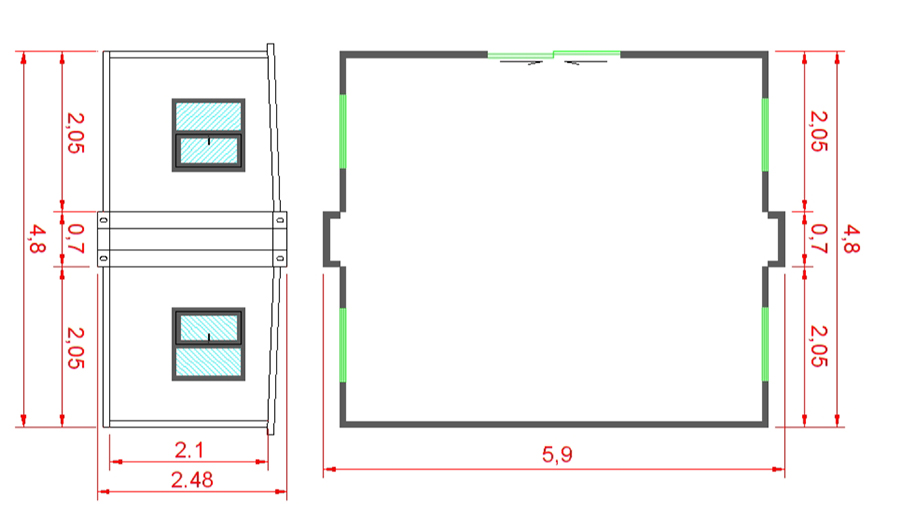

20 Feet Expandable Container House Datas |
||
|
Size |
External Dimensions |
5850*4800*2480 |
|
Internal Dimensions |
5510*4640*2240 |
|
|
Folding Size |
5850*700*2480 |
|
|
Frame Structure |
Middle Roof Beam |
5850*700*2480 |
|
Mid Bottom beam |
80*120*T2.5mm |
|
|
Hanging Head * 8 |
160 width profile * T2.2mm |
|
|
Main Roof Purlin |
160*210*160*T3mm |
|
|
Main Bottom Purlin |
30*30*T1.0mm |
|
|
Side Top Frame |
50*50*t1.5mm Channel iron |
|
|
Side Bottom Purlin |
40*60*t1.5mm |
|
|
Side Waterproof Protective Panel Folding Parts |
T1.5mm |
|
|
Folding Hinge |
ING |
|
|
Overall Framework Anti-corrosion Coating |
Electrostatic spray molding/straight white plastic powder |
|
|
Roof |
External Top Plate |
50eps board |
|
Internal Ceiling |
Color steel 831 ceiling tiles |
|
|
Wallboard |
Main Body |
50eps board |
|
Side Top Plate |
50eps board |
|
|
Internal Partition |
50eps board |
|
|
Floor |
Middle Floor |
Cement fiber board 18mm+1.6mm wood grain plastic |
|
Floor on both Sides |
18mm bamboo plywood+1.6mm wood grain |
|
|
Gap Junction |
Aluminum Plate |
220mm aluminum plate |
|
Toilet |
Include: toilet * 1, cabinet washbasin * 1, shower * 1 |
|
|
Electrical System |
LED ceiling light * 6, five hole socket * 5, single opening * 3, three hole socket * 3, air conditioning socket * 3 |
|
|
Entrance Door |
1780 * 2160 KFC Gate * 1 |
|
|
Window |
930 * 930 aluminum alloy sliding window * 8 500 * 925 aluminum alloy sliding window * 1 |
|
☆20Feet(L5900mm*W4800mm*H2480mm)

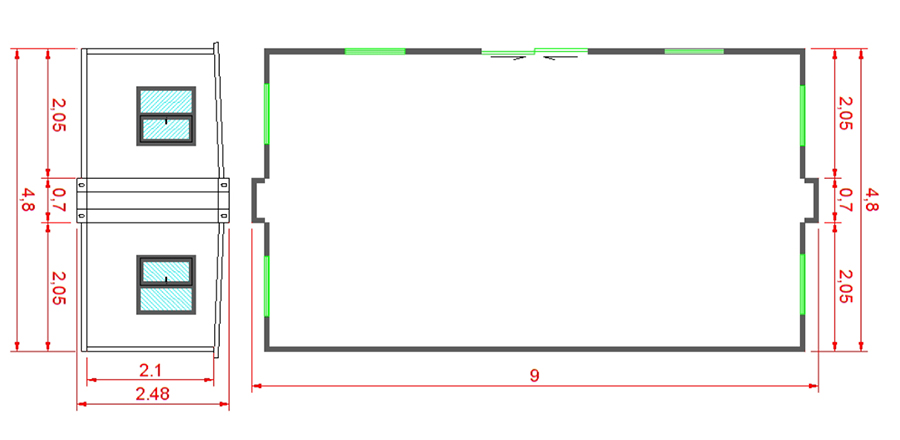

☆30Feet(L9000mm*W4800mm*H2480mm)

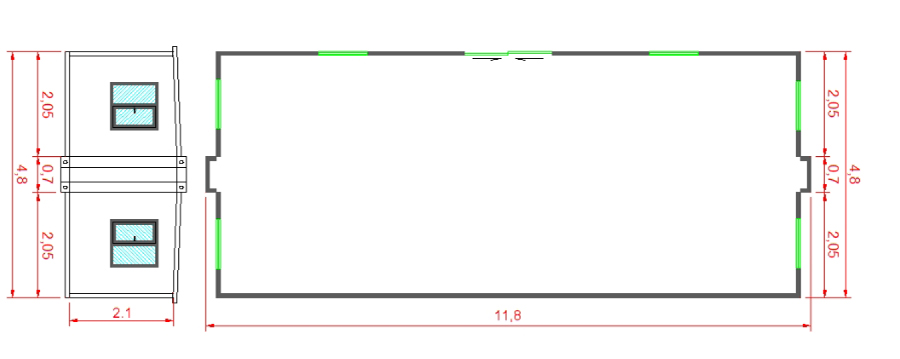

☆40Feet(L11800mm*W4800mm*H2480mm)
Product advantages
☆Construction
They utilize shipping containers as the basic structure, often incorporating light steel frames and color steel sandwich panels for walls.
☆Expandable Design

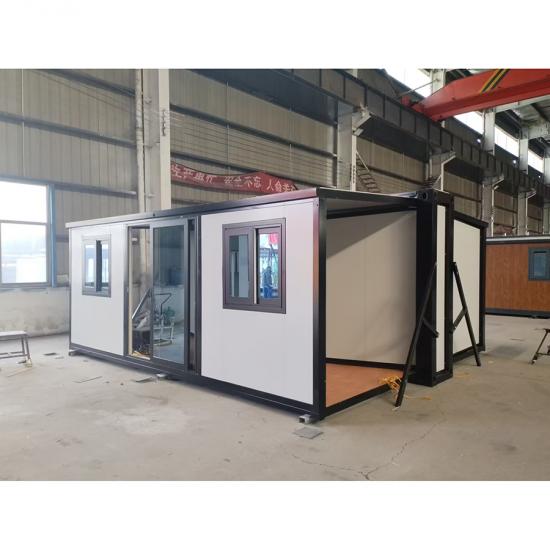

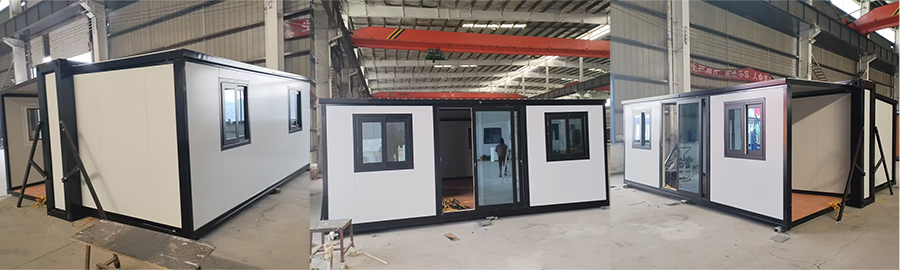

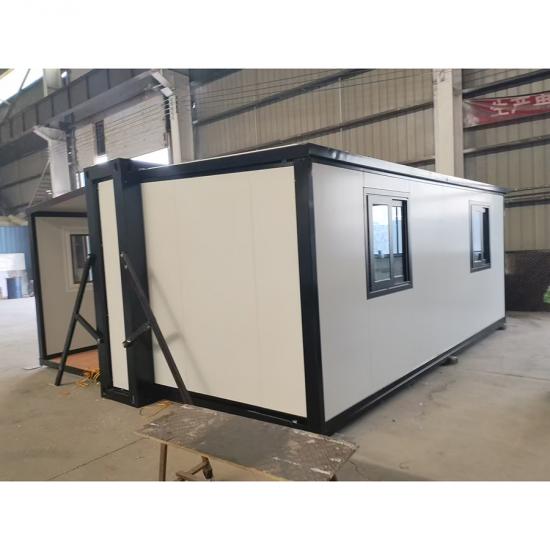

A key feature is the expandable double-wing structure. When folded, the house is compact for transportation, but when unfolded, the wings extend the interior space significantly.
☆Mobility
The expandable design allows for easy relocation after assembly, making it suitable for various temporary or long-term needs.
☆Fast Assembly
These houses are known for their quick assembly times, with some designs claiming to be fully assembled in a matter of minutes.
☆Versatility
They can be used for residential, office, or commercial purposes, and can be customized to meet specific needs.
☆Durability
They are designed to withstand various weather conditions, with some models boasting wind resistance up to 280 km/h and earthquake resistance above magnitude 8.
Product application
Our 20FT expandable container house is perfect for temporary site offices, emergency shelters, or compact living spaces, features a space-efficient 700mm folding design for easy transport and quick setup. Ideal for mobile workspaces or minimalist living with instant deployment capability.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
