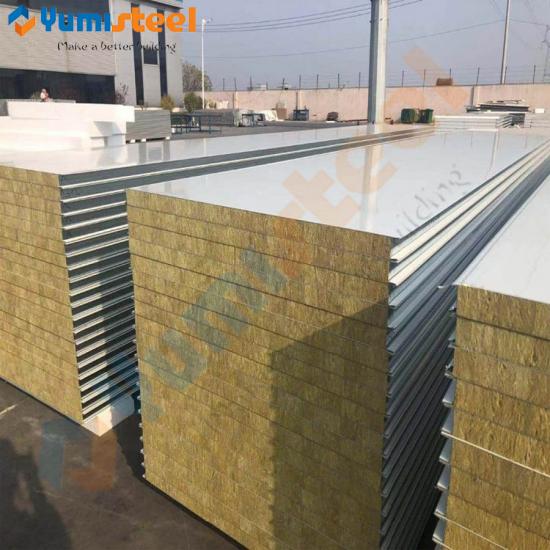

50mm exterior thermal rockwool wall sandwich panel
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
lead time:
10-15 daysproduct orgin:
Chinashipping port:
Qingdaopayment:
T/Tprice:
$25/m
Colorful choice:
Range from RAL codes, as long as you can provide the code, we can customize colored panels for you
Sustainability:
Made with PPGI/PPGL which provide strong physical properties. Moreover, chemical coating provides another layer of protection
Sound proof:
Mineral wool dimp sound like magic. They are the best sound proof material in materials we utilize
Affordable budget:
Unlike Polyurathene, mineral wools are made with recycled material which make they more cost efficient for most project
Easy installation:
Panels are easily screw on and secure with your structure
Environmental friendly:
Mineral wools are made with recycled material from mining. It helps us to make a better future.
Basic information:
Panel effective width
950/1150 mm
Steel sheet thickness
0.35-0.70 mm
Panel thickness
25/50/75/100/150/200/250 mm
Rockwool density
80-150 KG/M³
Color
As per RAL or customized
Coating
PE, SMP, HDP, PVDF
Steel type
PPGL, PPGI steel/ Aluminum sheet/ Stainless steel sheet
Fire resistance level
A1
Length limitation
Max 5.95 m for 20FT container; Max 11.95 m for 40Ft container
Joint way
Hidden lock type Z lock
Wall panel type:
Panel packages and loading reference:
The roof sandwich panels can be sealed by sealing tapes,or if you don't need it,we can cancel,too.And the container loading is by cranes.Then we will also put the thick EPS foam to protect the panels from crashing each other.
Panel theoretical weight:
12.64
Steel thickness
Rockwool density
Panel weight/M²
0.40 mm
80 KG/M³
10.91
0.40 mm
100 KG/M³
11.91
0.50 mm
80 KG/M³
0.50 mm
100 KG/M³
13.64
0.60 mm
80 KG/M³
14.36
0.60 mm
100 KG/M³
15.36
0.70 mm
80 KG/M³
16.09
0.70 mm
100 KG/M³
17.09
Sound damping value:
| Core material thickness (mm) | Sound reduction index (dB) | Spectrum adaptation factors | Spectrum adaptation factors |
|
|
|
C (dB) | Ctr (dB) |
| 50 | 30 | -1 | -4 |
| 75 | 31.5 | -2 | -4 |
| 100 | 34 | -2 | -4 |
| 150 | 35 | -3 | -5 |
It's one classic sandwich panel type in steel structure industry.A1 level fireproof performance.MOQ:500M²/Color & Size
The rockwool sandwich panel are consist of excellent quality of rockwool insulated material, and two steel layers(PPGL), with fireproof performance with grade A. MOQ:500M²/Color & Size
Upper and lower surface: adopt galvanized color steel plate with thickness of 0.4-0.75mm. Based on the specific requirements of customers, aluminum-zinc-plated color steel plates or galvanized steel plates can also be used.MOQ:500㎡ color&size
Rockwool as the core material is the most environment friendly building material nowadays. MOQ:500㎡/Color&Size
Core material rockwool is suitable for the buildings which need the effect of fire and sound insulation as it plays these performances excellent. MOQ: 500M2/Color&Size
Rockwool sandwich panel with excellent soundproof, fireproof, heat & thermal insulation. MOQ:500M2/color & size
