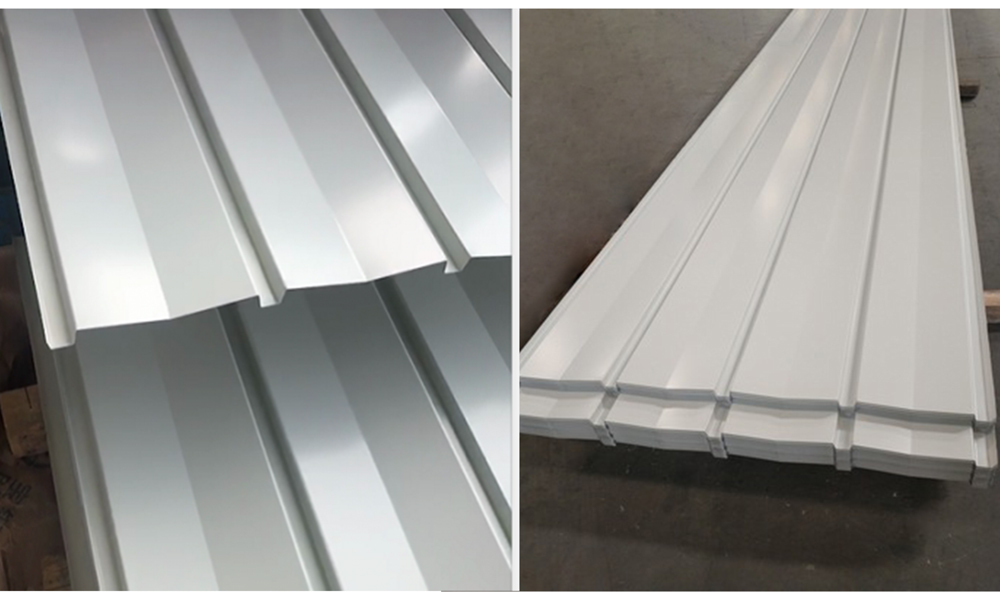

High rib galvanized corrugated metal panels for wall
With high ribs,it makes this corrugated metal panel have excellent drainage performance.Also it's cost effective type,with 1000mm effective width.MOQ:500M²/Color & Size
item no.:
YX25-248-992lead time:
7-15 daysproduct orgin:
Chinashipping port:
Xiamen / Qingdao / Tianjin,Chinapayment:
T/T; LC at sightcolor:
Customized
Features

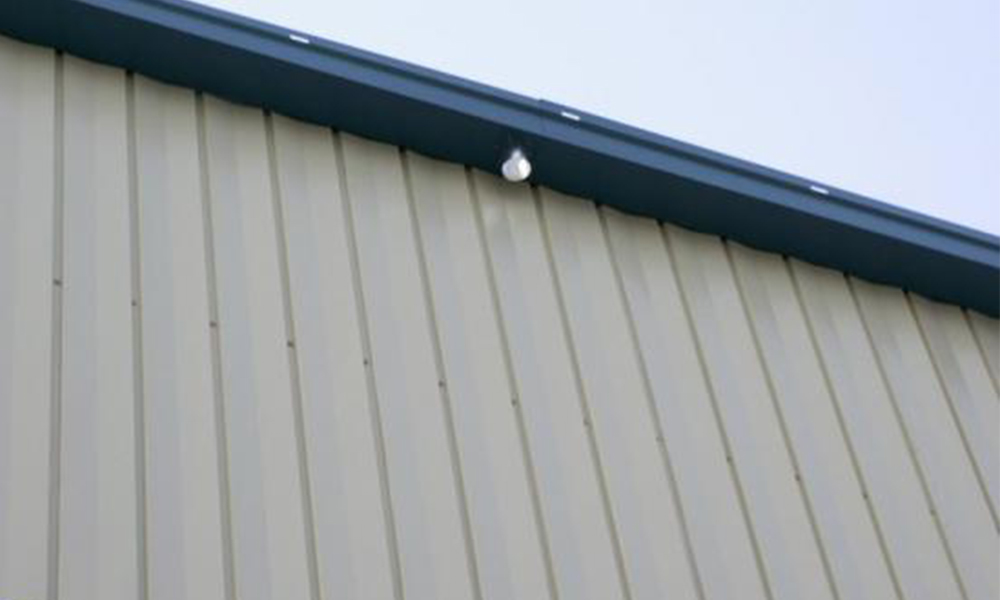

☆ The installation of the panel is almost like hidden screws, due to the special profiled type, the screws is fix into wave trough.
☆ The screw used for fixing is a matching self-tapping nail, making its color consistent with the color of the wall.
☆ The raw material is use galvanized or galvalume steel coils, with PE/PVDF/HDP/SMP coating, strengthen the anti-corrosion effect.
Application
This metal corrugated sheet is suitable for architecture with special design, for example, commercial buildings,residential houses, villas, museum, gymnasium, sports hall, audio visual hall, etc.
Roofing sheets specifications
Model NO. : | YX 25-248-992 |
Rib height : | 25 mm |
Rib distance : | 248 mm |
Modular width : | 992 mm |
Feeding width : | 1200 mm |
Available thickness : | AL-MG-MN alloy metal sheets:0.7 - 1.2mm; PPGI /PPGL steel sheets:0.30 - 0.75mm; Galvanized steel sheets:0.30 - 0.80mm; Alu-zinc steel sheets:0.30 - 0.80mm; Aluminum color sheets:0.6 - 1.2mm. |
Available length : | 20FT container: ≤ 5.95m |
Available material : | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets |
Surface treatment : | Original pre-painted color or natural zinc coated color |
Coating type : | PE, PVDF, HDP, SMP, etc. |
Rendering
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
1)Normal packing:
Packed with moisture-proof kraft paper.
2)Premium packing:
Packed with steel box.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
With high ribs,it makes this corrugated metal panel have excellent drainage performance.Also it's cost effective type,with 1000mm effective width.MOQ:500M²/Color & Size
Corrugated metal wall cladding has a timeless appeal,and can be used for roof,wall and fence.MOQ:500M²/Color & Size
YX35-125-750, this kind of motel type, is a modern type, with strong, impact resistant and economical performance, it is good for commercial and residential application. MOQ: 500㎡ color&size
Metal wall color steel sheet is an attractive, lightweight, and versatile option for roof,internally/ externally wall and fence.MOQ:500M²/Color & Size
This kind of color steel cladding is not only use for wall but also can use for roof system. MOQ:500M²/Color & Size
The profile was newly developed in April, 2020, offers superior spanning ability, excellent water carrying capacity and impressive rigidity. MOQ:500 M²/ Color & Size.
